The smart TME WORKER Integra is an intelligent instrument making programming, testing, downloading, printing, storing, accessing, reviewing test results much easier than it has been done in the past.

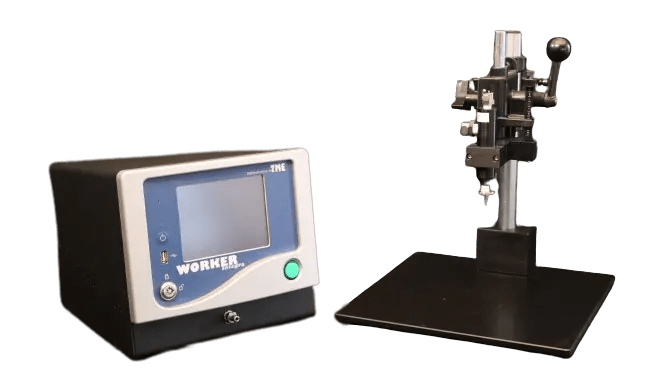

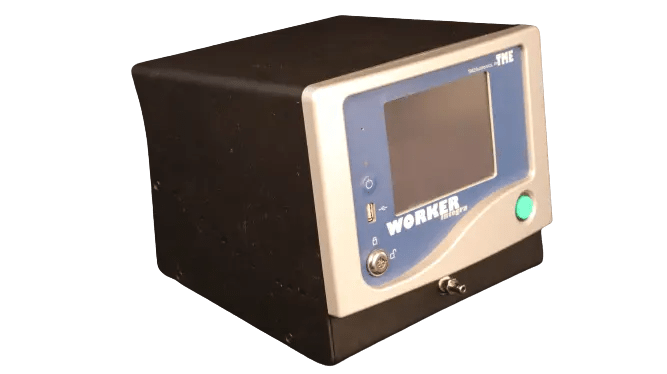

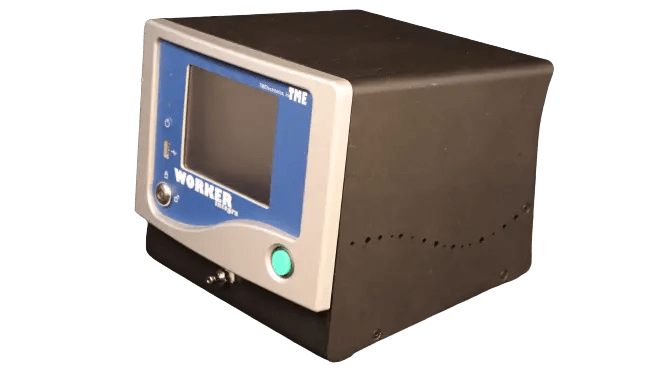

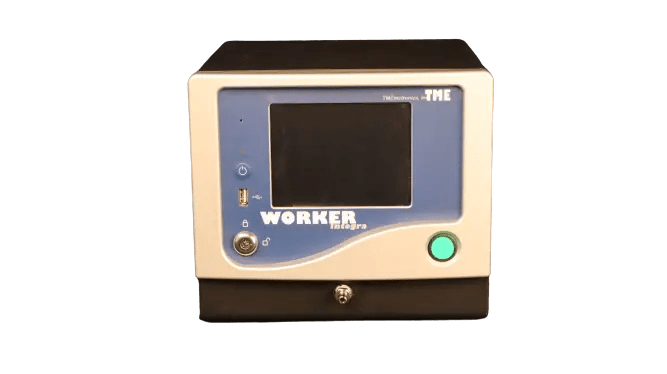

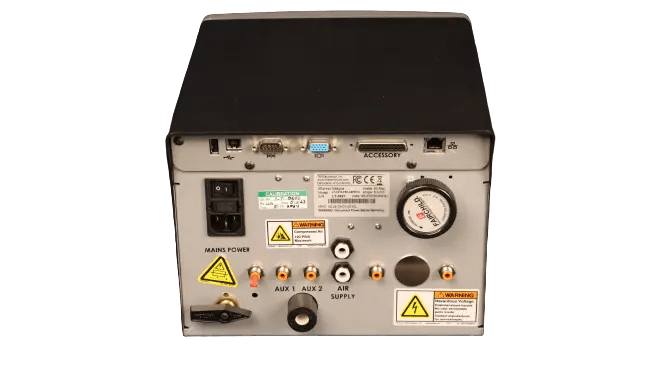

TME WORKER Integra™ with Smart Capabilities
TME worker integra leak test flow test Worker Integra Leak test and Flow Test – TM Electronics
Pressure or Vacuum Decay | Leak or Leak/ Flow Test System | Backpressure Occlusion
Small Footprint: 10″Wx10″Dx9″H
Security Controls: Key Lock
Display: 5.7” QVGA Color Touchscreen
Pressure Control: Manual or Electronic
Units: Psig, InH2O, mBar, kPa, inHg, ccm, LPM, cfm
Test Modes: Leak, Flow, Occlusion
Memory Capacity: 128 Mbytes (Expandable up to 512Mb)
LAN (Network): Web-browser & more
Test Modes: Leak, Occlusion, Flow
Range (PSIG): -13.5 to 150
Resolution (PSIG): 0.0001 (-13,5 to 150)
Pressure Accuracy: +/- 0.5% FSD
Repeatability (6 sigma/FSD): <1%
Flow Ranges (SCCM): up to 10.000
Flow Accuracy: +/- 2% FSD
Filter Dryer Set For Use with All TME Leak, Flow and Package Testers Protects your leak, flow or package tester from damage from water, water vapor, oil vapor or oil. Air quality provided to your instrument is critical to the long term performance of the equipment. The air supply must not contain water or oil liquid or vapor; otherwise, sensitive pneumatic components and the transducer may be damaged. The warranty on the instrument does not extend to damage caused by oil or water contamination or heavy particulate contamination. The components consist of: a. Coalescing Filter - 16 CFM, 150 psig maximum at 125F b. Desiccant Drying Filter - 5 CFM, 150 psig maximum at 125F c. Final Filter - 40 CFM, 5 um, 150 psig maximum at 125F The coalescing filter prevents oil vapors from contaminating the desiccant drying resin and decreasing their absorption capability. The desiccant drying material is silica gel with an indicating color. When the silica has turned PINK the material must be replaced or recharged. Recharging may be done according to manufacturer's instructions. The final filter is a particulate filter to prevent dust from the desiccant drying cartridge from entering the instrument. This filter can be monitored for discoloration or visible particulate. The filter element is a 5um pore size and can be washed and blown dry for reuse. Not all compressed air is acceptable instrument quality. For that reason a filtering system that combines a 5-micron filter with a drying system is advised. This system will provide both the filter and a desiccant dried air for the instrument, assuming basic plant air is controlled for moisture
SKU: LA-05
Radial Sealing Fixture The RS-01 TME Radial Sealing Fixture contains a pneumatically operated clamp that provides either a sealed leak tight access to a tubular product or a sealed leak tight dead end to the product during pressure decay leak testing. Radial Sealing Fixtures can be configured to diameters from approximately 0.022 to 6.000 inches. An Application for Radial Seal Clamps in Custom Sealing Fixtures: TME specializes in custom designed fixturing to accommodate the specific needs of our customers. This customer needed to perform leak and occlusion tests on catheters with an open distal tip and proximal side ports. This Radial Sealing Fixture is a pneumatically actuated fixture comprised of pneumatic seal clamps that function together to close around the outside diameter of the catheter and seal all leak paths from the catheter distal tip and proximal side ports during pressure decay leak and backpressure occlusion testing.
SKU: RS-01/2/3
Small Footprint: 10″Wx10″Dx9″H
Security Controls: Key Lock
Display: 5.7” QVGA Color Touchscreen
Pressure Control: Manual or Electronic
Units: Psig, InH2O, mBar, kPa, inHg, ccm, LPM, cfm
Test Modes: Leak, Flow, Occlusion
Memory Capacity: 128 Mbytes (Expandable up to 512Mb)
LAN (Network): Web-browser & more
Test Modes: Leak, Occlusion, Flow
Range (PSIG): -13.5 to 150
Resolution (PSIG): 0.0001 (-13,5 to 150)
Pressure Accuracy: +/- 0.5% FSD
Repeatability (6 sigma/FSD): <1%
Flow Ranges (SCCM): up to 10.000
Flow Accuracy: +/- 2% FSD
Radial Sealing Fixture The RS-01 TME Radial Sealing Fixture contains a pneumatically operated clamp that provides either a sealed leak tight access to a tubular product or a sealed leak tight dead end to the product during pressure decay leak testing. Radial Sealing Fixtures can be configured to diameters from approximately 0.022 to 6.000 inches. An Application for Radial Seal Clamps in Custom Sealing Fixtures: TME specializes in custom designed fixturing to accommodate the specific needs of our customers. This customer needed to perform leak and occlusion tests on catheters with an open distal tip and proximal side ports. This Radial Sealing Fixture is a pneumatically actuated fixture comprised of pneumatic seal clamps that function together to close around the outside diameter of the catheter and seal all leak paths from the catheter distal tip and proximal side ports during pressure decay leak and backpressure occlusion testing.
SKU: RS-01/2/3
Filter Dryer Set For Use with All TME Leak, Flow and Package Testers Protects your leak, flow or package tester from damage from water, water vapor, oil vapor or oil. Air quality provided to your instrument is critical to the long term performance of the equipment. The air supply must not contain water or oil liquid or vapor; otherwise, sensitive pneumatic components and the transducer may be damaged. The warranty on the instrument does not extend to damage caused by oil or water contamination or heavy particulate contamination. The components consist of: a. Coalescing Filter - 16 CFM, 150 psig maximum at 125F b. Desiccant Drying Filter - 5 CFM, 150 psig maximum at 125F c. Final Filter - 40 CFM, 5 um, 150 psig maximum at 125F The coalescing filter prevents oil vapors from contaminating the desiccant drying resin and decreasing their absorption capability. The desiccant drying material is silica gel with an indicating color. When the silica has turned PINK the material must be replaced or recharged. Recharging may be done according to manufacturer's instructions. The final filter is a particulate filter to prevent dust from the desiccant drying cartridge from entering the instrument. This filter can be monitored for discoloration or visible particulate. The filter element is a 5um pore size and can be washed and blown dry for reuse. Not all compressed air is acceptable instrument quality. For that reason a filtering system that combines a 5-micron filter with a drying system is advised. This system will provide both the filter and a desiccant dried air for the instrument, assuming basic plant air is controlled for moisture
SKU: LA-05
High resolution (0.0001 psi)
The small internal volume contributes to high sensitivity, repeatability, and reliability.
The Icon-Based Touchscreen Color Display allows the operator to control the test parameters, examine statistical analysis of results or download data files easily.
USB Connection to a PC
USB ports for keyboard, Mouse, Printer or bar code reader
LAN remote instrument control, data transfer, and operation
Optional electronic regulator available
The smart TME WORKER Integra is an intelligent instrument making programming, testing, downloading, printing, storing, accessing, reviewing test results much easier than it has been done in the past.
