TQC Sheen Adhesion Tester PosiTest ATM and ATA

When you need to measure the adhesion of coatings applied to metal, wood, concrete and similar substrates, our PosiTest Pull-off Adhesion Tester is the ideal solution.

Description

Specifications

Documents

Options & Accessories

Brought to you by TQC Sheen, our paint testing specialist brand, our robust and reliable pull off adhesion testers comply with a number of international standards.

The PosiTest range of pull off adhesion testers swiftly and accurately measure the force required to pull a specified test diameter of coating away from a substrate using hydraulic pressure.

Pumped up adhesion tester power

We make manual and automatic adhesion testers and both models feature powerful hydraulic pumps. You get an electronically controlled pump on the automatic version and both options apply smooth and continuous pull off adhesion tester pressure. This reduces user effort and eliminates any risk of operator influence over the pulling process.

A highly accurate adhesion tester

Every PosiTest adhesion tester pressure system is calibrated and certified to ± 1% accuracy using a NIST traceable load cell. Plus the high-grade industrial pressure sensor ensures continued accuracy.

Durable adhesion tester performance

Our PosiTest pull off adhesion testers come in an environmentally sealed enclosure that’s weatherproof, dustproof and shockproof.

Portable pull off adhesion testers

Our adhesion testers don’t need an external power source. This makes them fully portable and perfect for use both at the lab or out in the field.

Stable PosiTest inspection

The PosiTest adhesion tester compensates for misalignment. The self-aligning, quick-coupling actuator and spherical articulating dolly head enable uniform distribution of the pulling force over the surface under test. This prevents a one-sided pull-off and you get reliable, accurate measurements on both smooth or uneven surfaces.

A PosiTest memory machine

The internal memories of our automatic adhesion testers are powerful enough to store data and user notes on up to 1000,000 pulls across 1,000 batches. The wealth of information it can hold includes:

  • Maximum pull-off pressure
  • Nature of fracture
  • Rate of adhesion tester pull
  • Test duration
  • Dolly size
  • Pass/fail

The internal memory of the manual version of our adhesion tester can store information for up to 200 pulls, including:

  • Maximum pull-off pressure
  • Rate of adhesion tester pull
  • Test duration
  • Dolly size

PosiTest pull rate power

You’re in control of your adhesion tester’s pull rate: the pull rate indicator allows you to monitor and adjust the rate of pull in accordance with international standards.

A multi-sector adhesion tester

Our PosiTest adhesion testers are relied upon by teams operating across multiple sectors – everything from food and beverage manufacturers through to marine, defense, power and construction and engineering companies.

Perfect PosiTest inspection – as standard

You can rely on our pull off adhesion testers to give you highly accurate results to the most stringent of international standards, including:

A portfolio of pull off adhesion tester products

Across the IP portfolio we make a wide range of adhesion tester devices and products. For example, our customers have been equally impressed with the TQC Sheen Pull Off Adhesion Tester Model Pat GM01 GM04 and have found that their adhesion tests are more accurate using our TQC Sheen Cross Cut Adhesion Test KIT CC1000.

Stick with our adhesion tester knowledge!

We’ve learnt a thing or two about how to build exceptional adhesion testers over the years. And we like to share this knowledge when we can. Why not check out our complete guide to pull off adhesion testing here? If you have found yourself in a sticky testing conundrum, or simply have more questions – just get in touch!

Optional adhesion tester accessories

You can choose a number of optional extras to support the inspections you do with your PosiTest pull off adhesion tester device.

PosiTest 50mm accessory kit

  • Ideal for lower bond strength finishes such as coatings on wood, concrete or plastic
  • Larger surface area of dolly provides improved low range precision and repeatability
  • Range 0-500 psi (0-3.5MPa)
  • Includes 50mm standoff, 50mm hole saw and 50mm aluminum test dollies

Drilling template for 20mm and 50mm PosiTest dollies

Drilling template and drill bits to isolate the test area. Ideal for thicker coats on concrete.

Positest for Windows analysis software

Our powerful software analyzes your test results and allows you to view them clearly in graph, chart or histogram format. Plus you can export your adhesion tester data to a document or spreadsheet for convenience.

PosiTest adhesive kit

Get additional adhesive, mixing sticks, palettes and cotton swabs for your adhesion tester.

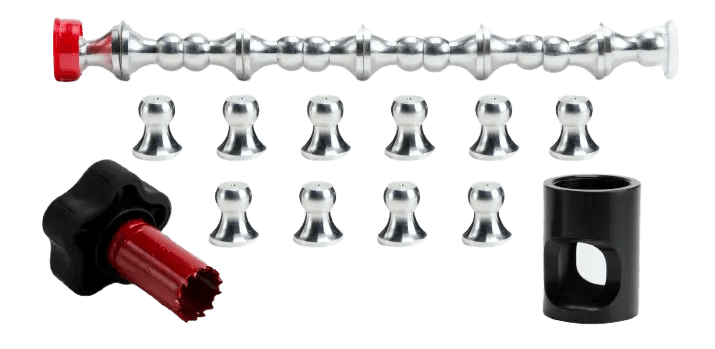

Adhesion tester dollies

Additional supplies of 10, 14, 20 and 50mm dollies for your Positest inspection device are available.

How to use a pull off adhesion tester

So, how do you use a PosiTest pull off adhesion tester? It’s a simple enough process, just follow these basic steps. You’ll soon be performing highly accurate PosiTest inspections of your inks and coatings:

  1. Dolly and coating preparation: Clean and abrade your PosiTest dolly and coating in preparation
  2. Adhesive and dolly application: Prepare and apply your adhesive to the dolly. The dolly is then adhered to the coated surface and the adhesive is allowed to cure.
  3. Test area separation: The test area of the coating is separated from the area surrounding the dolly by cutting or drilling.
  4. PosiTest pull-off test: Carry out your pull off adhesion test with either a manual or automatic adhesion tester.
  5. Store your pull off adhesion tester results

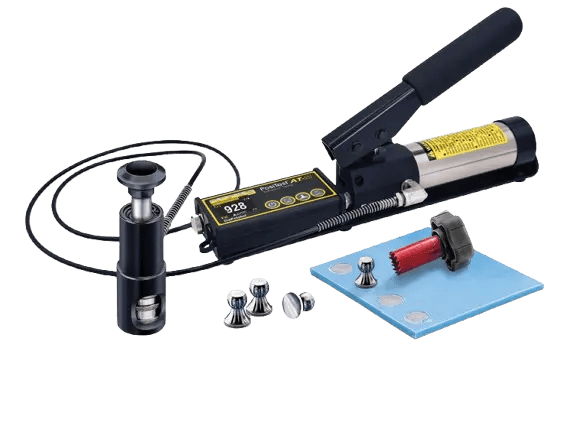

Positest Adhesion Tester – Manual

Our manual PosiTest adhesion tester features:

  • Heavy duty manual hydraulic pump designed to apply smooth and continuous pull off adhesion tester pressure with a single stroke
  • Pull rate indicator to manually monitor and adjust the rate of pull
  • Includes two AAA alkaline batteries

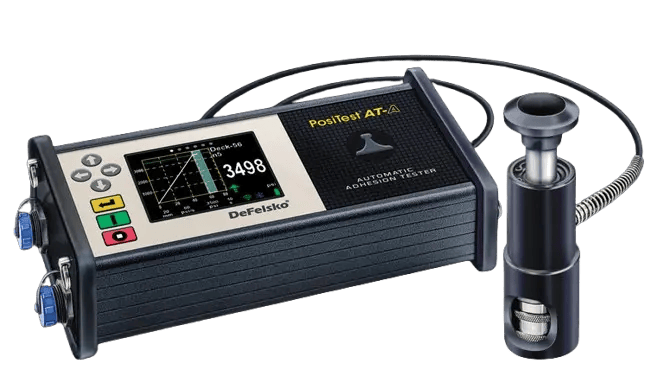

Positest Adhesion Tester – Automatic

Our automatic PosiTest adhesion tester features:

  • The electronically controlled hydraulic pump automatically applies smooth and continuous pull off adhesion tester pressure at a user-specified rate
  • Test with the simple push of a button. No twisting, pumping or cranking. No valves to close, needles to reset or scales to adjust
  • User selectable pull rates ensure compliance with international test methods for a variety of industries including metal, wood and concrete
  • Built in rechargeable batteries perform over 200 tests per charge. Continue testing with AC power while batteries recharge. Supplied with a universal AC adapter

TQC Sheen Art. nr. LD9333

Defelsko Positest ATM50 Manual Adhesion tester with 50 mm dollies

TQC Sheen Art. nr. LD9332

Defelsko Positest ATM20 Manual Adhesion tester with 20 mm dollies

TQC Sheen Art. nr. LD9331

Defelsko Positest ATA50 Automatic Adhesion tester with 50 mm dollies

Close View of TQC Art. nr. LD9334

TQC Sheen Art. nr. LD9334

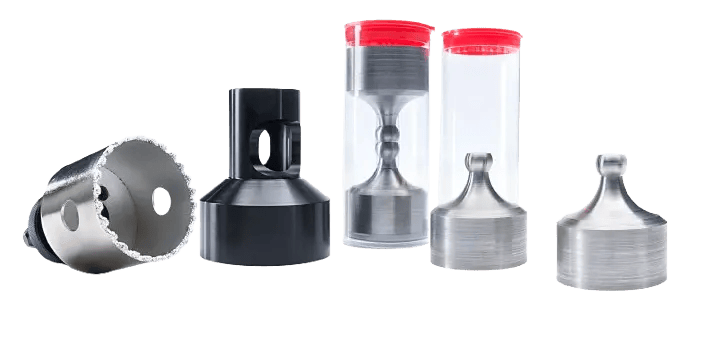

Defelsko Positest ATA50C Automatic Adhesion Tester with 50 mm dollies . Especially suited for concrete surfaces and overlays. Conform ASTM C1583 and EN 1542

TQC Sheen Adhesion Tester PosiTest ATM and ATA

TQC Sheen Art. nr. LD9330

Defelsko PosiTest ATA20 Automatic Adhesion Tester with 20 mm dollies

Dimensions case:  430x330x150 mm / 17x13x6 inch

Mass:  2 lbs / 5.5 kg (kit with case)

Accuracy:  +/- 1% of full scale

Resolution:  1 psi (0.01 MPa)

Power supply:  2x AAA (AT Manual)

LD9330:  20 mm dollies (20), 20 mm cutting tool and 20 mm standoff

LD9331:  50 mm dollies (8), 50 mm cutting tool and 50 mm stand off

LD9332:  20 mm dollies (20), 20 mm cutting tool and 20 mm standoff

LD9333:  50 mm dollies (8), 50 mm cutting tool and 50 mm stand off

Adhesion Tester:  Automatic and Manual

Warranty:  Two-year

Options

Icon Legend: Calibration Available Declaration of Conformity Calibration Certificate

TQC Sheen Art. nr. LD9333

SKU: LD9333

TQC Sheen Art. nr. LD9332

SKU: LD9332

TQC Sheen Art. nr. LD9331

SKU: LD9331

Close View of TQC Art. nr. LD9334

TQC Sheen Art. nr. LD9334

Defelsko Positest ATA50C Automatic Adhesion Tester with 50 mm dollies . Especially suited for concrete surfaces and overlays. Conform ASTM C1583 and EN 1542

SKU: LD9334

TQC Sheen Adhesion Tester PosiTest ATM and ATA

TQC Sheen Art. nr. LD9330

Defelsko PosiTest ATA20 Automatic Adhesion Tester with 20 mm dollies

SKU: LD9330

Accessories

Icon Legend: Calibration Available Declaration of Conformity Calibration Certificate
    Close View of TQC Art. nr. LD9305

    TQC Sheen Art. nr. LD9305

    50mm accessories kit

    SKU: LD9305

    Close View of TQC Art. nr. LD9310

    TQC Sheen Art. nr. LD9310

    Dollies 20mm for PosiTest AT, 50 pieces

    SKU: LD9310

    Product Image Coming Soon

    TQC Sheen Art. nr. LD9312

    20mm hole saw for PosiTest AT

    SKU: LD9312

    Close View of TQC DeFelsko 20 mm dollies

    TQC Sheen DeFelsko 14 mm dollies, 10 pieces

    DeFelsko 14 mm dollies, 10 pieces

    SKU: LD9314

    Close View of TQC DeFelsko 20 mm dollies

    TQC Sheen DeFelsko 10 mm dollies, 10 pieces

    DeFelsko 10 mm dollies, 10 pieces

    SKU: LD9313

Dimensions case:  430x330x150 mm / 17x13x6 inch

Mass:  2 lbs / 5.5 kg (kit with case)

Accuracy:  +/- 1% of full scale

Resolution:  1 psi (0.01 MPa)

Power supply:  2x AAA (AT Manual)

LD9330:  20 mm dollies (20), 20 mm cutting tool and 20 mm standoff

LD9331:  50 mm dollies (8), 50 mm cutting tool and 50 mm stand off

LD9332:  20 mm dollies (20), 20 mm cutting tool and 20 mm standoff

LD9333:  50 mm dollies (8), 50 mm cutting tool and 50 mm stand off

Adhesion Tester:  Automatic and Manual

Warranty:  Two-year

Options

TQC Sheen Art. nr. LD9333

SKU: LD9333

TQC Sheen Art. nr. LD9332

SKU: LD9332

TQC Sheen Art. nr. LD9331

SKU: LD9331

Close View of TQC Art. nr. LD9334

TQC Sheen Art. nr. LD9334

SKU: LD9334

TQC Sheen Adhesion Tester PosiTest ATM and ATA

TQC Sheen Art. nr. LD9330

SKU: LD9330

Accessories

Icon Legend: Calibration Available Declaration of Conformity Calibration Certificate

Features & Benefits

Self-aligning aluminum dolly enables accurate measurements on smooth or uneven surfaces

Powerful internal adhesion tester memory

Complies with multiple international standards

Calibrated and certified to ± 1% accuracy

Compatible with PosiSoft desktop software

Environmentally sealed enclosure – weatherproof, dustproof and shockproof – meets or exceeds IP65

Fully portable adhesion tester
