Standards

ASTM D412

Introduction

ASTM D412 is a widely recognized standard developed by the American Society for Testing and Materials (ASTM) that pertains to the testing of tensile properties of rubber and elastomers.

Objective of ASTM D412:

The primary objective of ASTM D412 is to establish a standardized method for evaluating the behavior of rubber materials when subjected to stretching forces.

Test Procedure:

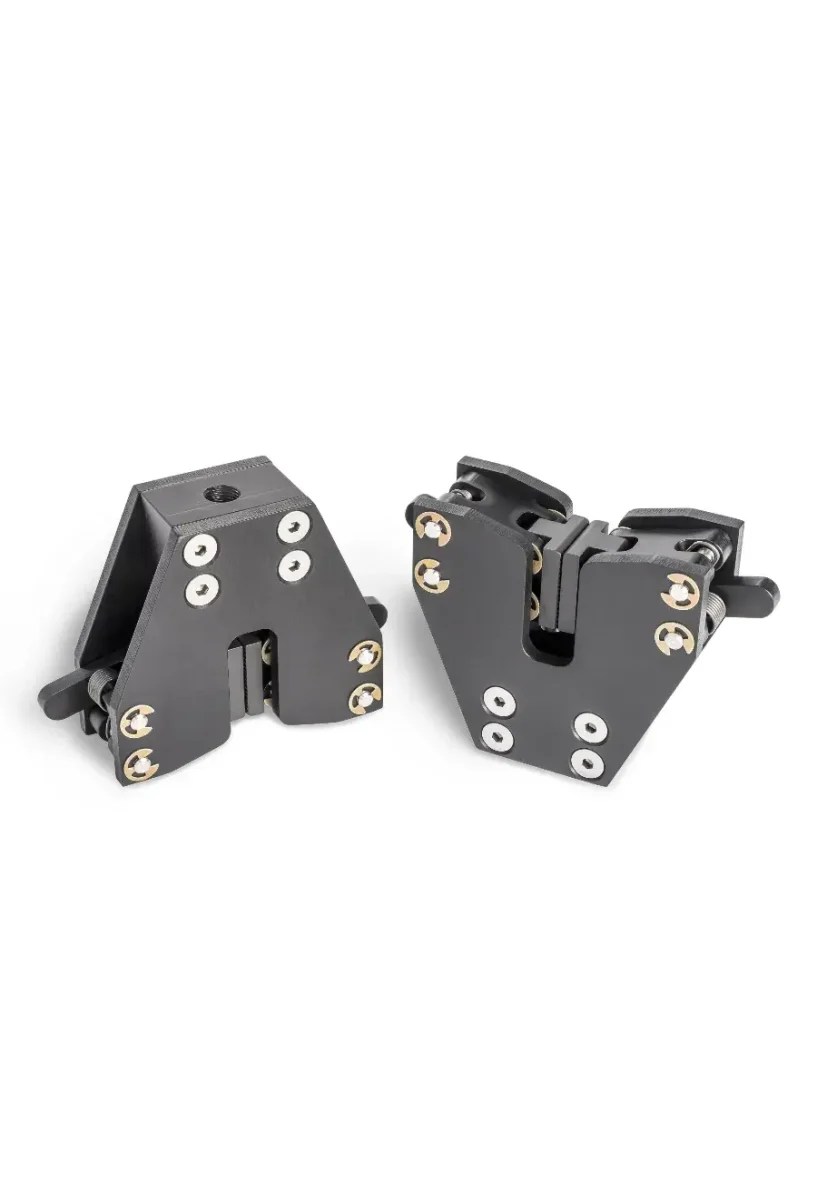

The test procedure outlined in ASTM D412 involves preparing dumbbell-shaped specimens from the rubber samples. These specimens are then subjected to a controlled tensile force until they fracture or reach a specified elongation percentage.

Key Parameters:

The key parameters determined through ASTM D412 testing include:

  1. Tensile strength
  2. Elongation at break
  3. Modulus of elasticity

Tensile Strength:

Tensile strength represents the maximum force or stress that the material can withstand before breaking. It is expressed in units of force per unit area, such as pounds per square inch (psi) or megapascals (MPa).

Elongation at Break:

Elongation at break indicates the percentage increase in the specimen's length at the point of fracture compared to its initial length. It provides insights into the material's flexibility and stretchability.

Modulus of Elasticity:

Modulus of elasticity, also known as Young's modulus, characterizes the material's stiffness or rigidity. It measures the resistance to deformation under an applied stress and is expressed as force per unit area.

Standard Requirements:

ASTM D412 includes specific requirements for specimen preparation, testing equipment, and testing conditions to ensure accurate and reproducible results across different laboratories. It provides guidelines for both constant rate of elongation (CRE) and constant rate of loading (CRL) test methods.

Importance and Benefits:

By adhering to ASTM D412, manufacturers, engineers, and researchers can effectively evaluate and compare the mechanical properties of rubber materials, enabling informed decision-making regarding their suitability for specific applications. It promotes consistency, quality control, and standardization in the rubber industry, ensuring the safety and reliability of products that incorporate rubber components.
