ASTM D4417
Introducing ASTM D4417 – Industrial Physics
ASTM D4417 is a global ASTM standard method for measuring the surface profile of blast cleaned steel.
The quality of correct pretreatment of a surface prior to application of the coating is essential. You need to get it right to ensure the quality of the coating and achieve its optimum lifetime. If you’re seeking a quality finish then surface profile testing is an important inspection to include.
The height of a surface profile has been shown to be a factor in the performance of various steel coatings. These ASTM test methods will enable you to measure the profile of abrasive blast cleaned surfaces in the field, shop, and laboratory.
What’s the need for surface profile testing?
The profile of a surface influences how a coating you apply to it will perform. It makes a difference to adhesive strength and the coverage and consumption of the coating material. Very smooth surfaces with low surface profiles are tough to paint, with their poor adhesion. But surfaces with high surface profiles require very thick coatings.
Surface profile should be measured before you start painting. This is to ensure a prepared surface conforms to the requirements specified by the manufacturer of your coating sample.
ASTM D4417 testing equipment
So, how can Industrial Physics improve your ASTM D4417 testing?
TQC Sheen Pretreatment Test Kit (PTK)
Grab a TQC Sheen pretreatment test kit and you’ll soon have your steels pretreated and ready for painting.
We can offer you both basic and full pretreatment test kits. They contain the tools you’ll need for all your pretreated steel testing before you get the paintbrush out.
Our pretreatment test kits come in strong, double walled suitcases. The smart selection of inspection tools and measuring devices contained allow the paint inspector to properly survey blast cleaned steelwork.
TQC Surface Profile and Coating Thickness Gauge
Our thickness testing device is a combination gauge that can be equipped with two different tips: one for inspecting surface roughness, the other for coating thickness.
It comes with a sharp tungsten carbide replaceable tip for surface profile measurement and a hardened round tip for coating thickness measurement. You also get a glass plate for zero calibration and a handy leather carry pouch to carry the thickness gauge and accessories in.
A high precision film and foil thickness gauge that can be used for accurate surface profile testing.
It’s developed for measuring so-called ‘replica tapes’ such as Testex®. The large clear display makes it easy to read under all conditions and the values can be displayed in either microns or inches. More good news? Our thickness gauge comes with a protective hard case you can carry it around in.

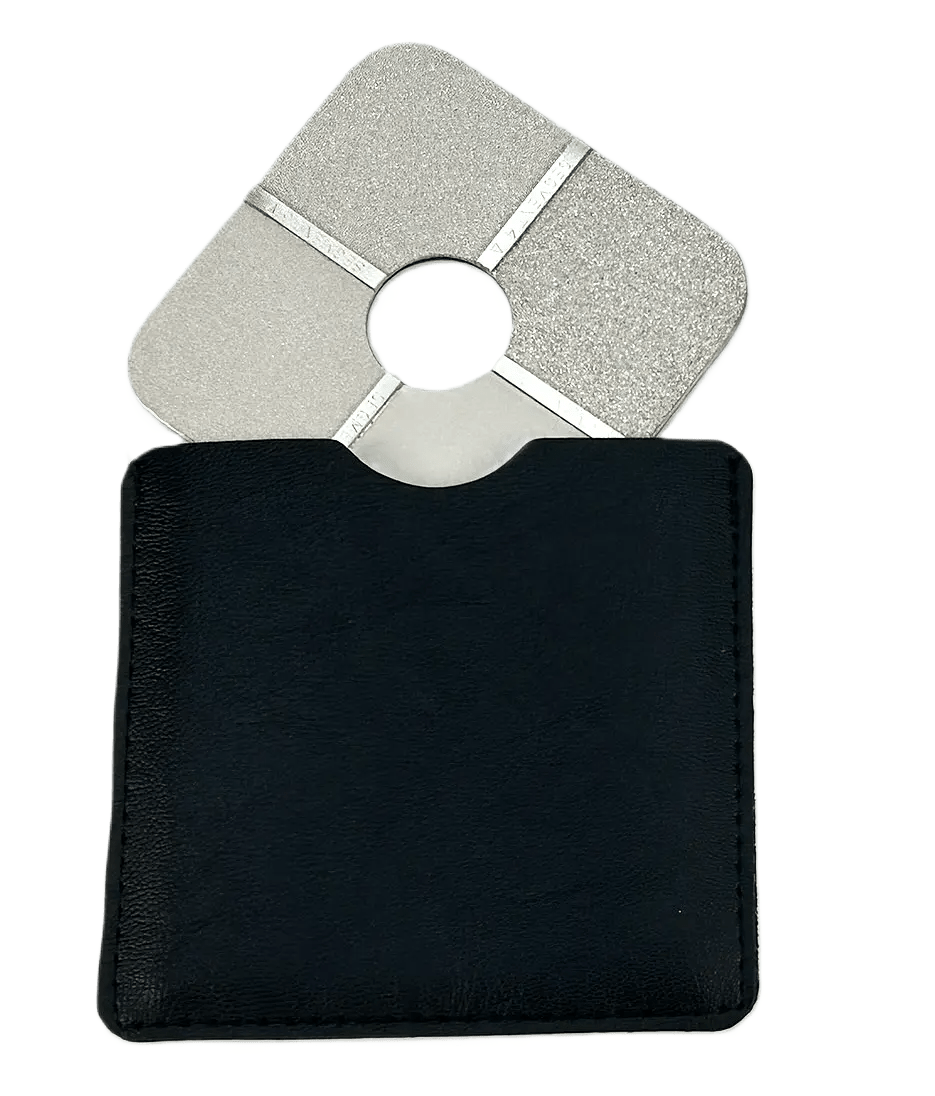

Steel Surface Roughness Comparator
TQC Sheen surface roughness comparators come in a range of profiles. Choose the one you need to support your surface profile testing.
Need ASTM testing solutions? Get in touch
You’ll likely be asking a lot of them so, go on, why not treat your steels?! Invest in the best surface profile testing and inspection solutions with Industrial Physics today!
Contact us – Industrial Physics
Your global test and inspection partner for ASTM D4417
