Products  > Testing Machines Inc. X100 Model 1kN Single Column Tensile Tester

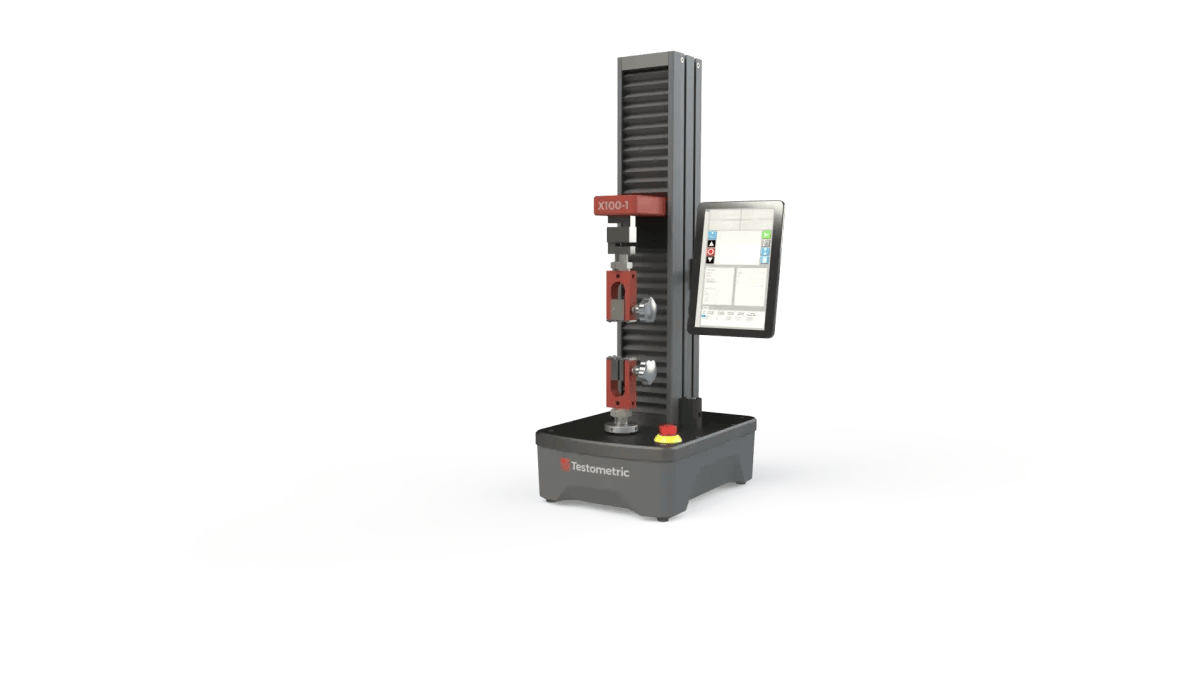

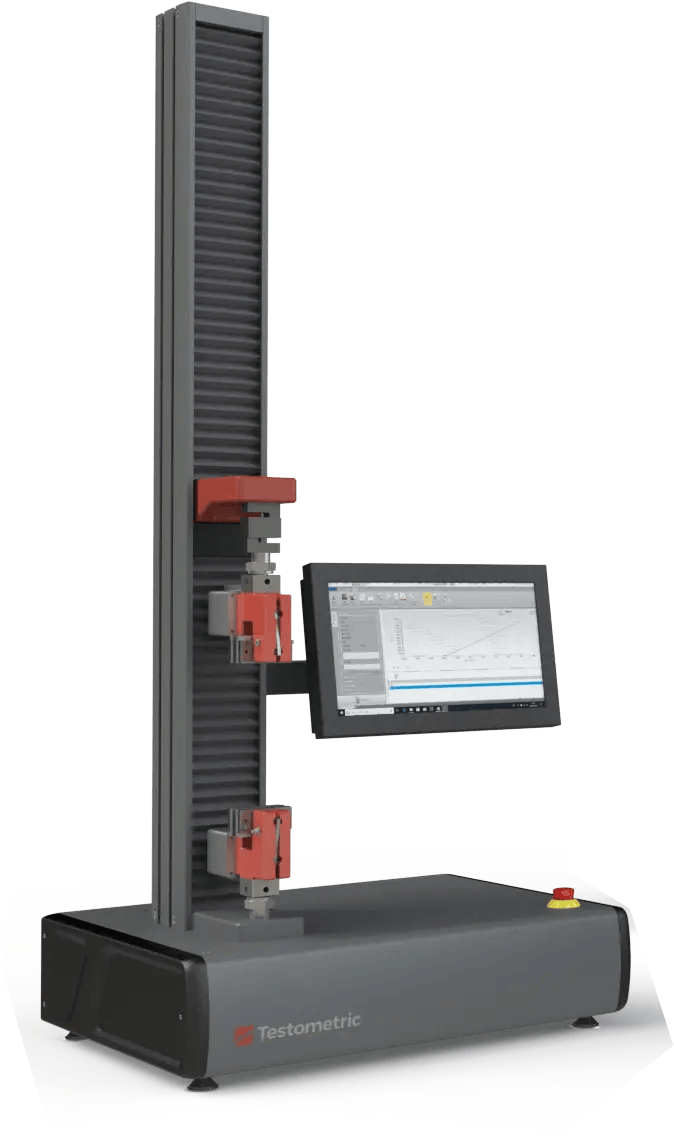

Testing Machines Inc. X100 Model 1kN Single Column Tensile Tester

Single-column Universal Test Machine designed for basic tension and compression testing, or more advanced materials testing applications.

In order to request a quote, arrange a service or make an inquiry about this product you must select modifiers above.

Description

Compact and lightweight Universal Testing Machine with full computer control and precision AC servo drive system. Ideally suited for high-volume, low force testing applications such as paper or packaging materials. Available in both standard and long-travel versions, making it suitable for testing high-elongation materials. Choose a single load cell or select multiple load cells to meet your testing needs. Load cell options of 1 kN (1,000N), 500N, 250N, 100N, 50N, 20N, 10N, 5N are available.

High precision and accuracy

Fully digital testing system with high precision control and accuracy, includes automated computer control of test methods giving simplicity of operation.

High-resolution load cells with accuracies better than +/-0.5% down to 1/1000th of the load cell capacity.

Automatic recognition of load cells and extensometers, with on-device storage of calibration parameters.  800% overload capability of load cells without damage.

Force Measurement

Universally Calibrated, better than Grade 0.5 EN 7500-1, DIN 51221, ASTM E-4, and AFNOR A03-501. Range 0.4% to 100% minimum. Automatic identification of load cell. Resolution 1 part in 500000. Electronic load cell overload protection.

Extension Measurement

Full frame length to a maximum resolution of 0.0001mm (selectable). Accuracy +/- 0.01mm. Absolute, relative, and auxiliary modes in mm, inch, and percent.

Load Frame

Rigid frame, using precision linear guidance system and rigid extruded support column. Frame stiffness 5kN/mm plus K factor facility built in. Re-circulating ball screw with bellows. Electronic limit trips, total travel trips, and customer programmable safety stops.

Software

All models are supplied with the comprehensive winTest Analysis software package. With built-in test methods covering tensile, compression, flexural, peel, shear, tear, cyclic, creep, and multi-stage tests. It includes a wide range of industry standard test methods and the facility to create and store an unlimited number of test methods. There is automated storage of all test data and ease of export to other software packages such as Word, Excel, Access, and SPC systems for enhanced report generation.

Speed Control

Exceptional low speed performance with speeds down to 0.001mm/min. Drive system temperature and current protection.

Tensile Testing Experts

We have a number of solutions for strength testing, tensile testing, compression testing and more. If you want insights into the strength and flexibility of your materials, check out our range of Universal Testing Machines to meet all your needs.

Specifications

SKU:

Applications: Adhesion Testing, Compression and Crush Testing, Creep to Fail Testing, Flexibility Testing, Materials Testing, Strength Testing, Tensile Testing

Materials: Adhesive, Plastics and Polymers, Textile

Force Capacity kN: 1

Accuracy: Better than +/- 0.5% down to 1/1000th of load cell capacity

Max speed at full load: Fast, quiet testing with high-efficiency pre-loaded self-cleaning ballscrews

Power kW: 0.2

Weight: 24kg

Vertical space mm: 850

Number of Columns: 1

Crosshead travel mm: 670

Position Control Resolution mm: Maximum resolution of 0.0001mm

Throat depth (force axis to column): 81

PC-Controlled: Automated computer control of test methods

PC Connection: USB

Operating temperature °C: -10 to +40

Frame stiffness: 5kN/mm with built-in K factor facility

Operating humidity: +10 to +90% non-condensing

Speed range: Down to 0.001mm/min

Machine Configuration: Compact and lightweight, Single-column, bench mounted, available in standard and long-travel versions

Speed Accuracy: +/- 0.01mm under stable conditions

Data Sampling rate: High-speed data collection systems for up to 4 synchronous channels

Data Acquisition Rate (at PC): 500Hz

Crosshead Guidance: Precision crosshead control via digital AC servo drive and brushless servo motor

Overall dimensions W x D x H: Small footprint design for economy of bench space

Max force at full speed kN: 1

Max speed at full load mm/min: 2000

Electrical supply: 230V, 1ph 50/60Hz (115V option available)

Accuracy: High precision control and accuracy

Available load cells: 5N, 10N, 20N, 50N, 100N, 250N, 500N & 1kN
