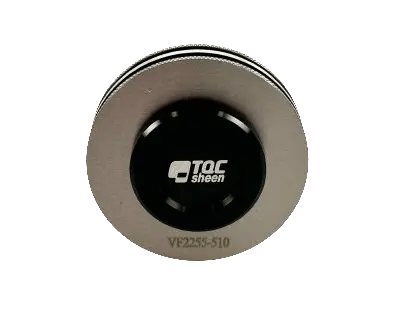

Wet Film Thickness Wheel

SKU:36708

Brand:

  • TQC Sheen
  • Industries:

    Standards:

    Description

    Documents

    Options

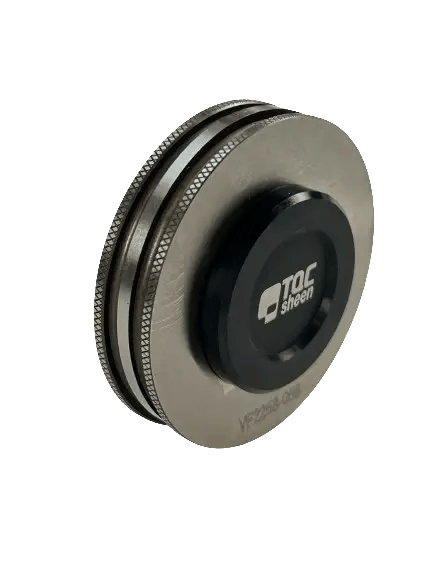

    Specially by TQC developed instrument for use on wet lacquers, paint and coil coated surfaces. Equipped with a precision roller-bearing for smooth rolling over the surface . The wheel has three rims, the inner rim being eccentric to the two outer rims. The outer rings are notched for a firm grip inthe surface to prevent slipping. Made of stainless steel and with an aluminum grip.
    use
    Hold the wheel by its central spindle. Begin at maximum thickness to reduce risk of inaccuracy caused by surface tension.
    Roll the wheel through the wet film with the side 1 in the diagram touching the substrate. Roll for at least one whole turn and slowly enough for wetting to occur. Roll the wheel backwards by at least on complete turn. The wet film thickness is read from the scale, at the end of the wetted segment of the middle circle, 2 in the diagram
    To use wheel on pipes, measure across the longitudinal axis (lengthways) of the pipe.
    On rough surfaces, measurements will be made from the surface peaks and represent the minimum wet film thickness.

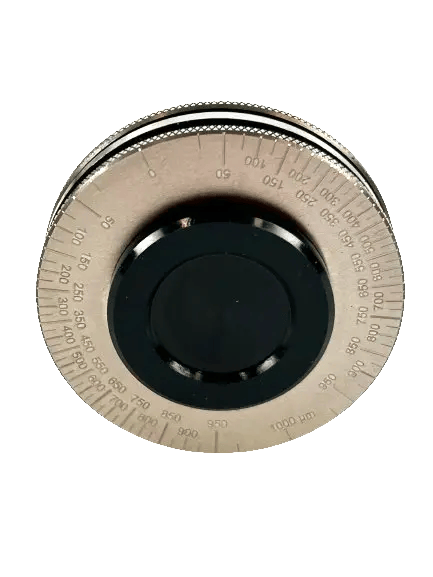

    Wet film thickness wheel, model: NS1000, Range: 0-1000µm, Division: 25µm, Diameter: 50mm
    Sheen Instruments equivalent product code: SH1109/1000

    Product Image Coming Soon

    Art. nr. VF2255

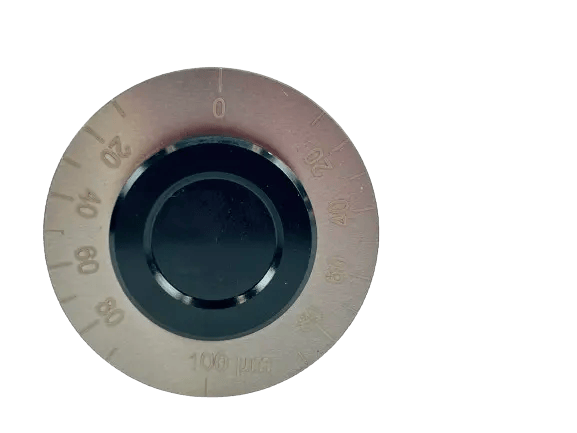

    Wet film thickness wheel, model: NS100, Sheen Instruments equivalent product code: SH1109/100

    Product Image Coming Soon

    Art. nr. VF2256

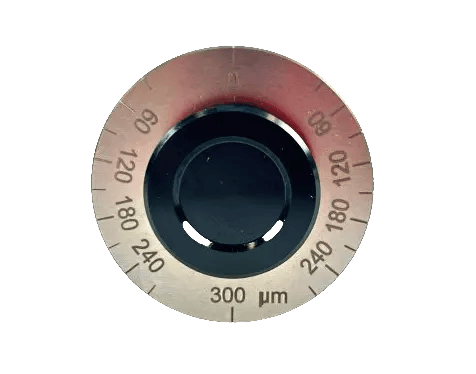

    Wet film thickness wheel, model: NS300,

    Product Image Coming Soon

    Art. nr. VF2257

    Wet film thickness wheel, model: NS600,

    Close View of TQC Art. nr. VF2067

    Art. nr. VF2258

    Wet film thickness wheel, model: NS1000, Range: 0-1000µm, Division: 25µm, Diameter: 50mm
    Sheen Instruments equivalent product code: SH1109/1000

    Options

    Icon Legend: Calibration Available Declaration of Conformity Calibration Certificate
    Product Image Coming Soon

    Art. nr. VF2255

    Wet film thickness wheel, model: NS100, Sheen Instruments equivalent product code: SH1109/100

    SKU: VF2255

    Product Image Coming Soon

    Art. nr. VF2256

    Wet film thickness wheel, model: NS300,

    SKU: VF2256

    Product Image Coming Soon

    Art. nr. VF2257

    Wet film thickness wheel, model: NS600,

    SKU: VF2257

    Close View of TQC Art. nr. VF2067

    Art. nr. VF2258

    Wet film thickness wheel, model: NS1000, Range: 0-1000µm, Division: 25µm, Diameter: 50mm Sheen Instruments equivalent product code: SH1109/1000

    SKU: VF2258

    Options

    Product Image Coming Soon

    Art. nr. VF2255

    SKU: VF2255

    Product Image Coming Soon

    Art. nr. VF2256

    SKU: VF2256

    Product Image Coming Soon

    Art. nr. VF2257

    SKU: VF2257

    Close View of TQC Art. nr. VF2067

    Art. nr. VF2258

    SKU: VF2258

    Features & Benefits
