Check the wet film thickness of freshly applied paint on-site with the TQC Sheen Wet Film Measuring Comb - a pocket-sized, 4-sided aluminum notch gauge covering 25-2000 μm in 30 steps, per GOST R 51688 and ISO 2808. Dispatched within 2 days.
£17.00 Ex. VAT
Dispatched within 2 days
Pay securely with

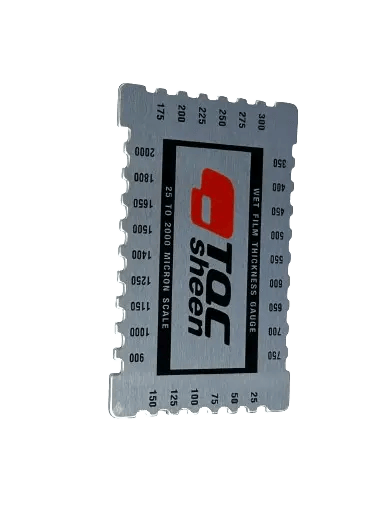

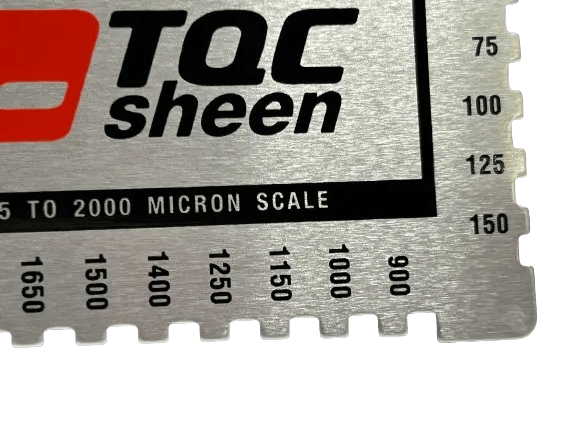

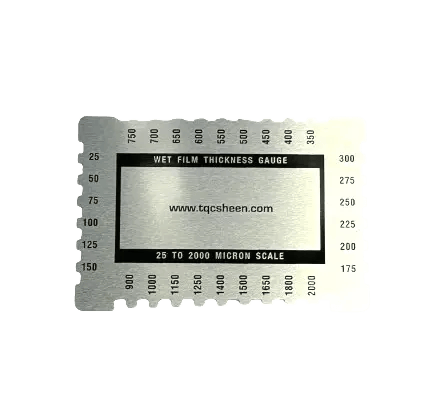

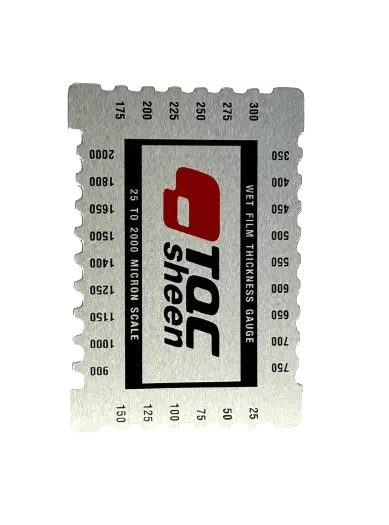

The TQC Sheen Wet Film Measuring Comb (LD2030) is a manual notch gauge used to read wet film thickness immediately after a paint or coating has been applied. The operator presses the gauge into the wet film – the deepest tooth that touches wet paint indicates the film thickness. Four sides carry 30 notch steps covering 25 to 2000 μm, with rotation between ranges built into the design. Weather-resistant aluminum construction, pocket-sized at 82 x 55 mm, no battery, no software, no calibration downtime.
The comb is used by paint and coatings applicators, coatings inspectors, industrial-finishing QC teams, marine and protective-coatings inspectors, and paint manufacturers for thickness testing at the point of application – the earliest moment a coating can be checked, before flash-off or cure.
Stay audit-ready across two named film-thickness standards. GOST R 51688 (Russian paint-testing standard for wet film) and ISO 2808 (paints and varnishes, determination of film thickness) both cover the notch-gauge method the comb uses. One tool, two standards on the spec sheet, no method-hopping.
30 steps across 25-2000 μm covers the working band you actually specify. Architectural paints, industrial-finishing primers and topcoats, marine anti-corrosion systems – the range covers routine coating specifications from thin decorative films through heavy-build protective coatings. Rotate the comb between the four sides to switch ranges without picking up a different tool.
No battery, no software, no service contract. A pocket-sized aluminum tool that fits daily line-side QC or field inspection – especially in environments (offshore, ATEX zones, tight access) where a digital gauge cannot be taken.
Every TQC Sheen Wet Film Measuring Comb ships with a 1 year parts and labour warranty as standard – our Industrial Physics group commitment across all brands. Individual calibration certification is available on request for QC and inspection programs that need documented per-comb traceability against GOST R 51688 or ISO 2808 tolerances.
Bulk order coverage: at this unit price, most inspection teams and applicators order combs by the box. Contact Industrial Physics support for consolidated multi-site shipping, custom printing on the comb for team or contract branding, and quotations in USD, GBP or EUR.
SKU: LD2030
Applications: Coating Testing, Thickness Testing
Materials: Paints and Coatings
Total range: 25 to 2000 μm across 4 sides / 30 steps
Side 1: 25, 50, 75, 100, 125, 150 μm
Side 2: 175, 200, 225, 250, 275, 300 μm
Side 3: 350, 400, 450, 500, 550, 600, 650, 700, 750 μm
Side 4: 900, 1000, 1150, 1250, 1400, 1500, 1650, 1800, 2000 μm
Weight: 10 g
Dimensions: 82 x 55 x 0.8 mm / 3.23 x 2.17 x 0.03 inch
Material of construction: Weather-resistant aluminum
Calibration: Calibration certificate available on request
Calibration Available
Declaration of Conformity
Make an Inquiry
The comb is designed to be used in accordance with GOST R 51688 (the GOST wet film thickness test method) and ISO 2808 (paints and varnishes, determination of film thickness – current edition ISO 2808:2019). Both cover the notch-gauge method the comb uses. If your spec sheet lists a different standard, ask your specialist – most national wet-film-thickness standards run the same method with the same tolerances.
Immediately after paint is applied – and before flash-off, cure or any thickening from solvent loss – press the comb into the wet film at 90 degrees to the substrate. The teeth on each side are graduated in μm. The reading is the highest-numbered tooth that shows a paint mark at the edge (the deepest tooth that just touched wet paint). Rotate the comb to the side that best matches the expected film thickness. For a 100 μm target coating use Side 1 (25-150 μm range). Wipe clean with a solvent-appropriate wipe between readings.
The aluminum Wet Film Measuring Comb (LD2030) covers 25-2000 μm in 30 steps across 4 sides and is a wipe-and-reuse tool built to last across shifts and years. The Plastic Wet Film Comb covers 25-900 μm on a plastic tag intended as a disposable single-use gauge – especially useful when the comb needs to be filed with the QC record as evidence for an ISO or customer audit, or when solvent-contaminated combs are being scrapped rather than cleaned. Pick the aluminum reusable comb for repeated shift-work; pick the plastic disposable comb when the comb itself becomes the QC record.
Yes – individual calibration certification against traceable references is available on request at order time. In service, the aluminum notch teeth are dimensionally stable under normal use (wipe cleaning, occasional solvent contact), and the comb does not drift the way a battery-powered gauge can. Re-certification is not usually needed unless the comb has been physically damaged or has visible wear on the deepest teeth from heavy shift use.
Yes – the weather-resistant aluminum construction and 10 g / 82 x 55 mm pocket-sized form factor are the reason to pick a manual comb over an electronic wet-film gauge for field work. No battery, no software, no service contract, works in cold conditions, works in ATEX zones where a battery-powered instrument would be restricted, works at heights and confined-space entry where operators cannot carry electronics. Applicators, marine and protective-coatings inspectors, and site QC teams typically buy these combs by the box for shift-issue.
