Products  > TQC Sheen Vacuum pump Oil-free

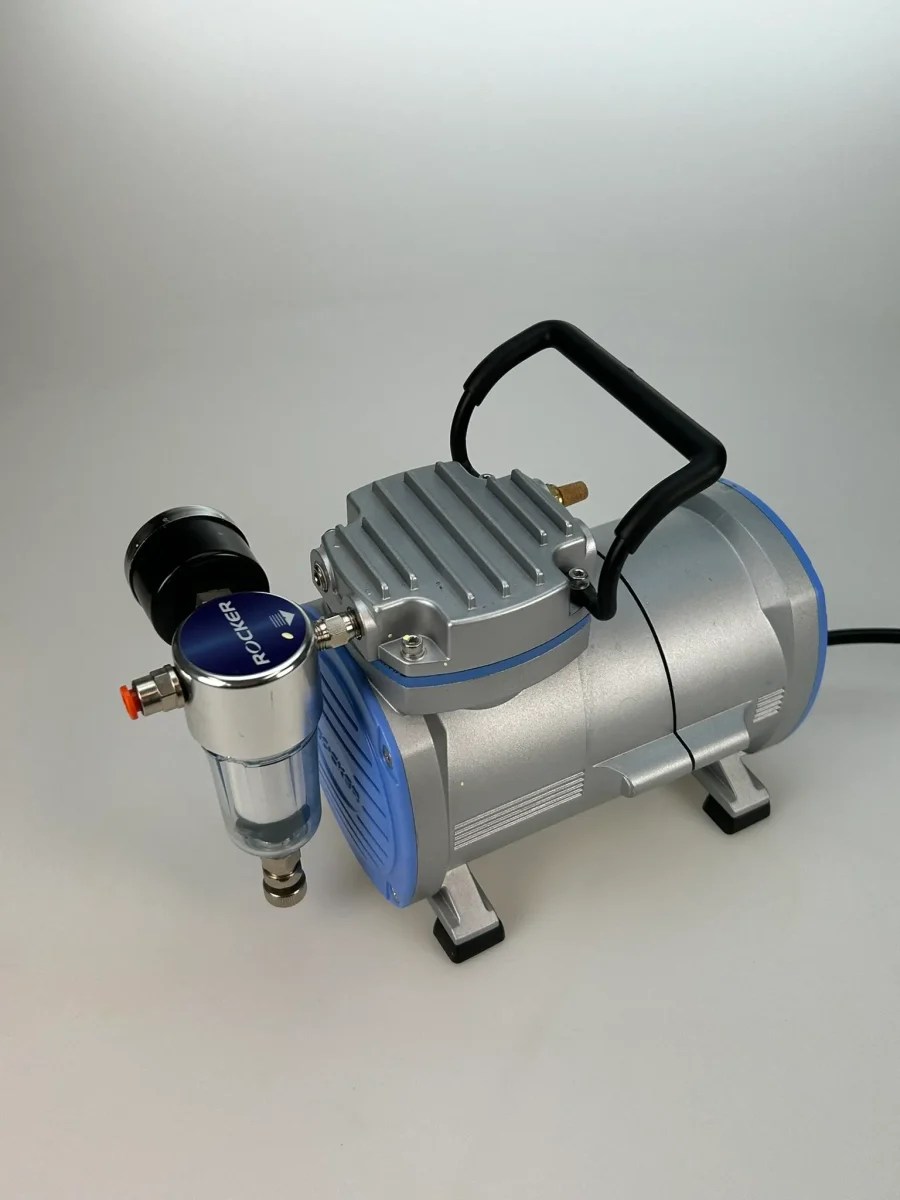

TQC Sheen Vacuum pump Oil-free

Oil-free vacuum pump. Available in 110VAC/60Hz and 220VAC/50Hz

In order to request a quote, arrange a service or make an inquiry about this product you must select modifiers above.


Oil-free vacuum pump. The absence of lubricant and oil in the piston makes it maintenance free. This vacuum pump can be used with for instance the AB3655, Automatic Film Applicator Compact.
Available in 110VAC/60Hz and 220VAC/50Hz
Vacuum pump, 18 l/min, 1450rpm 230VAC



Applications: Temperature and Climatic Testing

Materials: Inks and Coatings

Dimensions: 26,8×13,5×20,4 cm / 10,6×5,3×8 inch

Noise level: 50.0 dB

Max. flow rate: 23 l / min AB3675 / 20 l / min (AB3676)

Max. current: 0,7 A (AB3675) / 0,3 A (AB3676)

Max. vacuum: -680 mmHg

Max. ability: 65 W (AB3675) / 60 W (AB3676)

Motor rotation: 1750 RPM (AB3675) / 1450 RPM (AB3676)

Flood Protection: Yes

vacuum regulator: yes

moisture absorber: Yes
