Fan blade edge condition is a significant factor in the thrust performance of an engine. The Torus Edge Profile Inspection System is a low cost optical instrument designed for the visual inspection of the leading and trailing edges of turbine edge fan.
Brought to you by Torus, our specialist testing brand, the Torus A523 Blade Edge Profile Inspection System is a low cost optical instrument designed for the visual inspection of the leading and trailing edges of turbine edge fan.
Fan blade edge condition is a significant factor in the thrust performance of an engine. With the Torus Edge Profile Inspection System, it is designed to provide a low cost optical instrument, providing the visual inspection of leading and trailing edges of turbine edge fan.

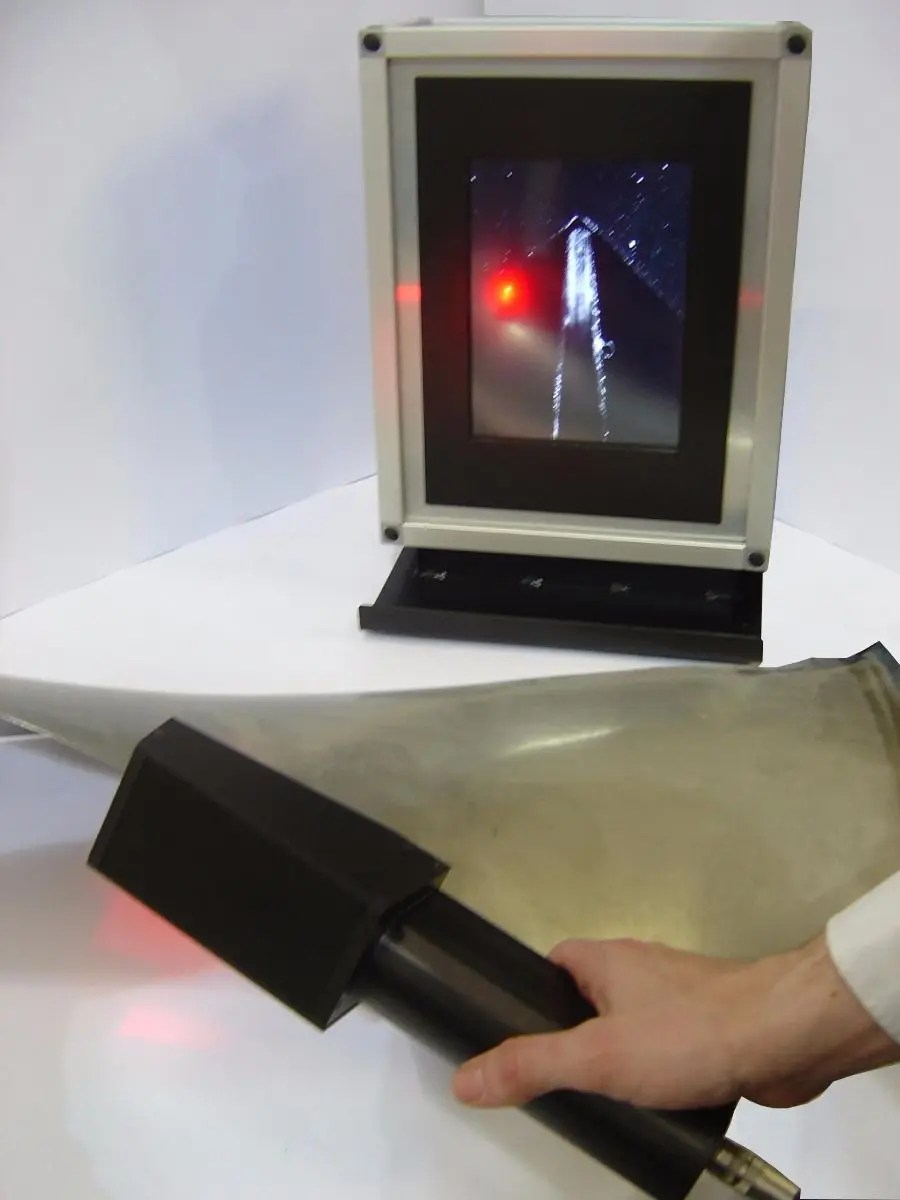

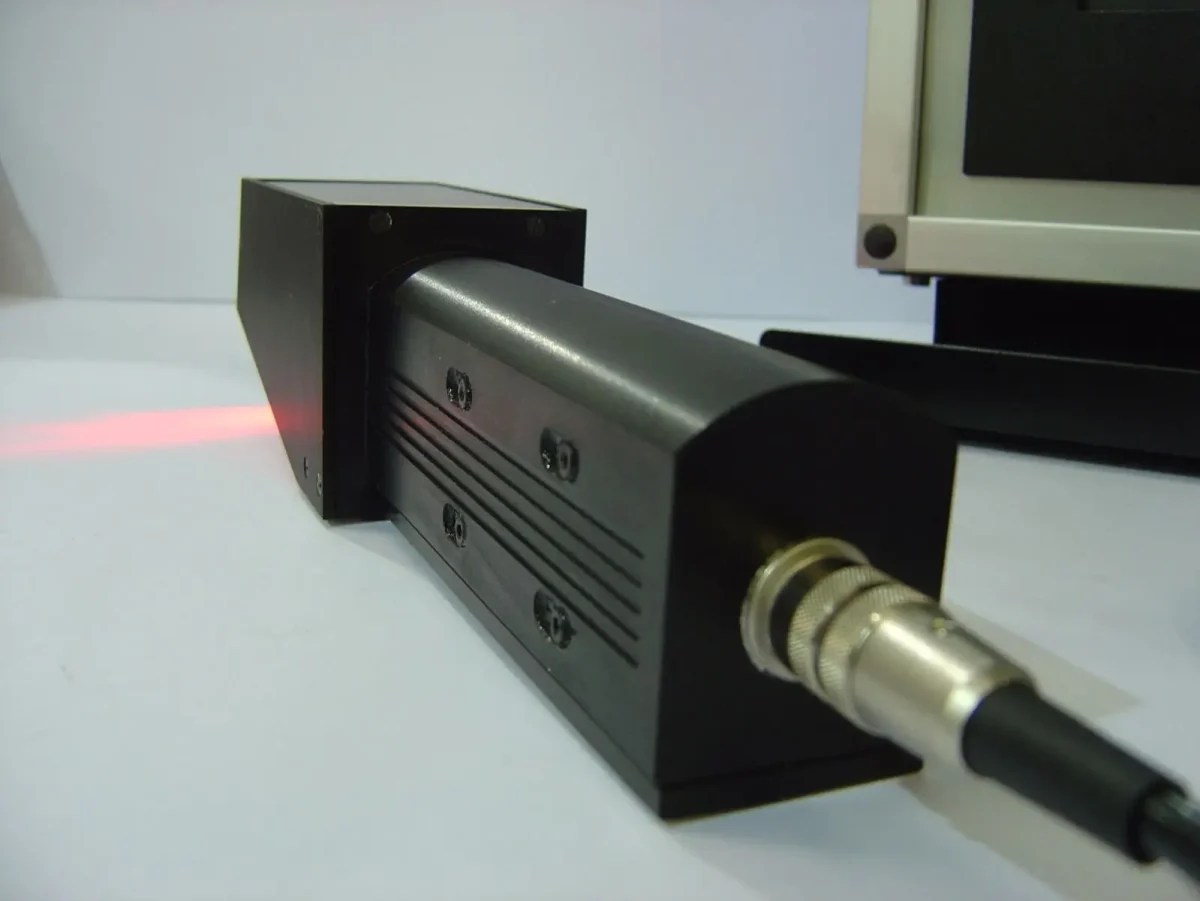

The system comprises of a CCD camera contained in a hand held aluminum housing that is manually transversed along the edge of the blade, a hardened steel location and roller support ensure that the camera accurately follows the contour of the aerofoil, which is illuminated by an array of light emitting diodes (LEDs) arranged around the location vee.
The profile is viewed on a 10.4″ TFT high resolution monitor housed in a protective case, which additionally incorporates a convenient storage tray for the hand module when not in use.
The system is designed for use in a blade manuafcturing and repair environment; however, being lightweight and portable the instrument may readily be utilized to inspect fan blades on the wing.
Ideal for across the Aerospace industry, the A523 Blade Edge Profile Inspection System is designed for inspecting turbine edge fans.
The instrument is very lightweight and portable, which offers users greater flexibility of where and how they use the instrument. It is also a low-cost optical instrument, so it is an ideal addition to your QC and QA inspection requirements.
Part of the Modular Frameworks range from Torus, we can offer bespoke Controlled Environments providing a semi-permanent versatile work space in a shopfloor or factory environment.
Machine enclosures are designed and manufactured to help build a protective environment for sensitive equipment.
Part of the Modular Frameworks range from Torus, we can offer bespoke partitions and walkways to corner off areas that need segregation or protection.
SKU: Torus_A523
Applications: Optical Testing
Materials: Metal
Magnification: x20 magnification
Field of view: 10 mm
Dimensions: The module measures 300 x 400 x 60 mm and the monitor case measures 435 x 310 x 300 mm
Power: 230V/115V/50Hz-60Hz
