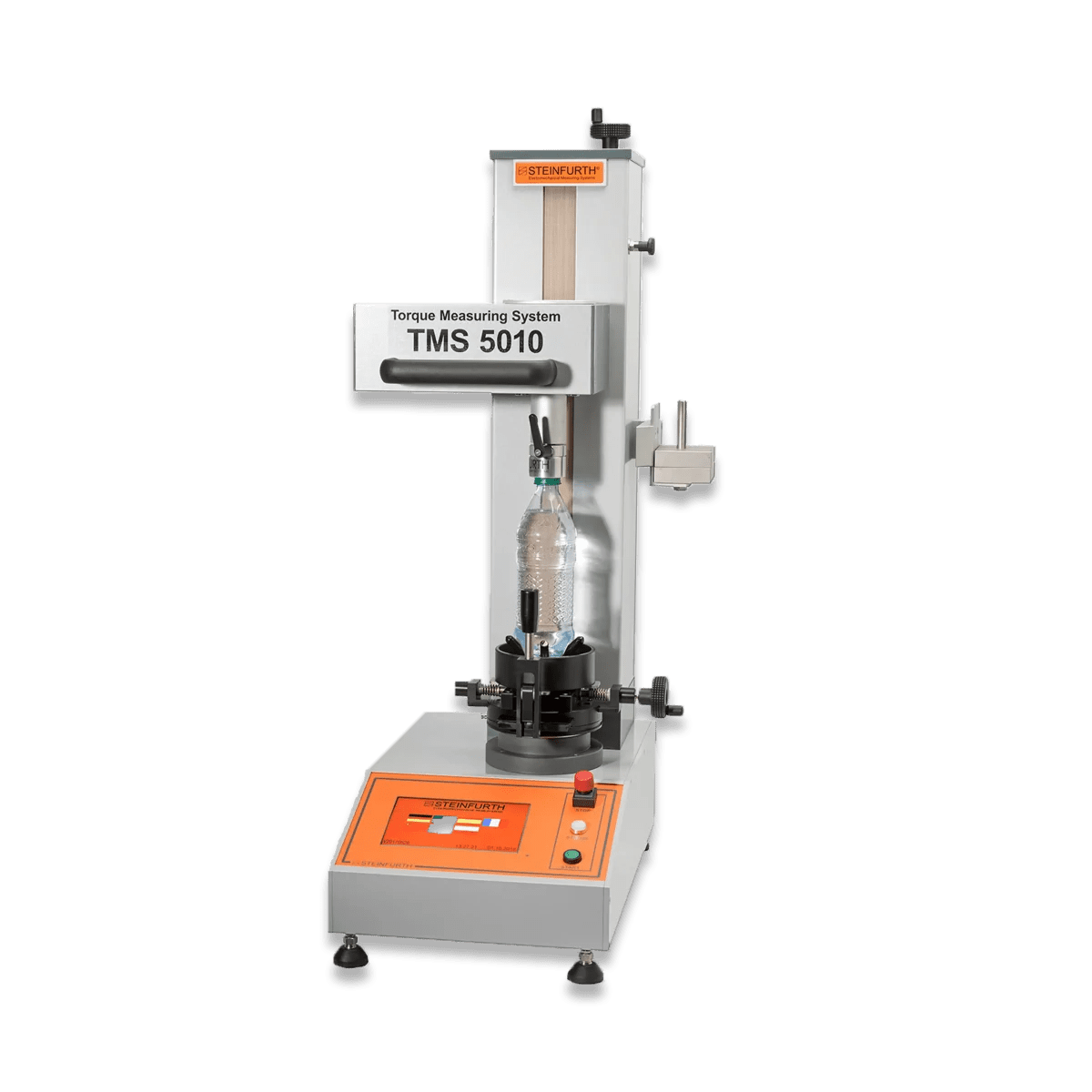

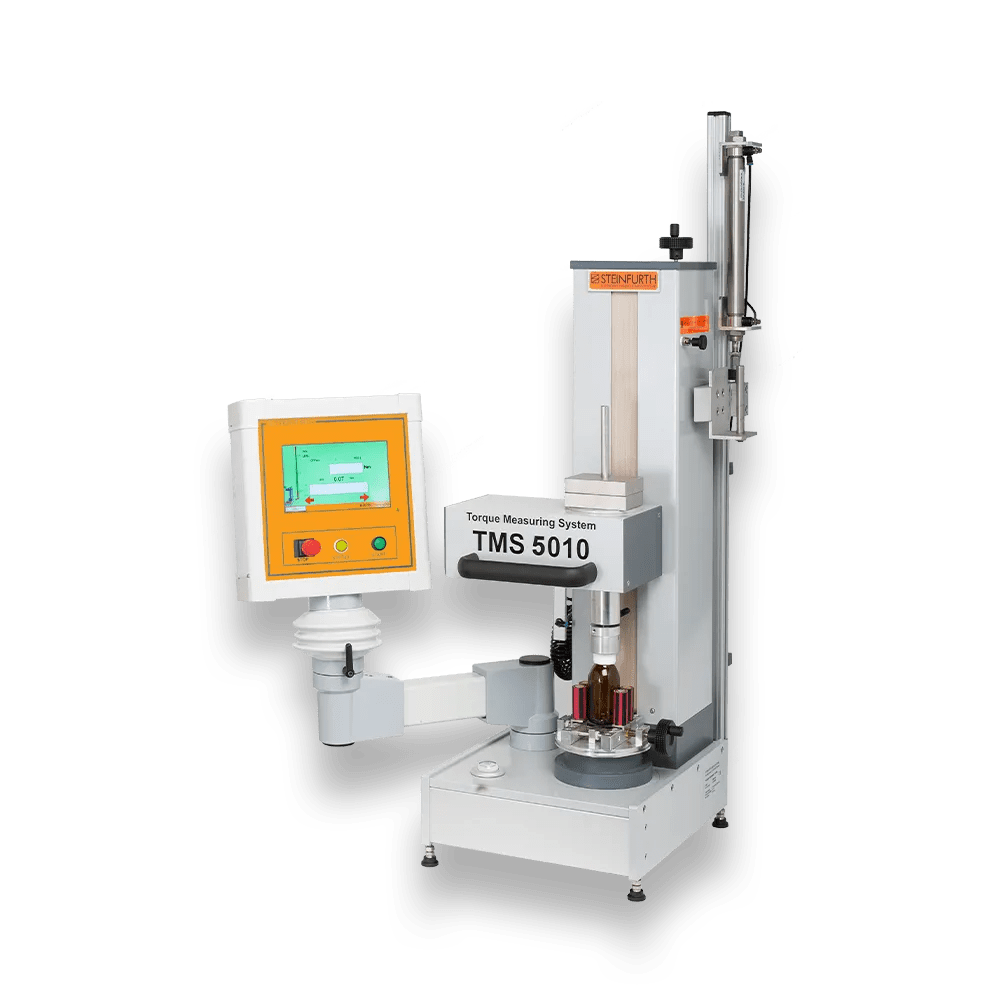

Steinfurth Torque Measuring System TMS 5010

A reliable torque measurement tool offering an accurate method for determining the torque needed to open or close bottle caps.

SKU:124011

00016159

Applications:

Description

Specifications

Documents

Accessories

Efficient torque measurement for bottle caps

Be certain that you know the torque needed to open or close bottle caps with this reliable testing tool. For routine tests where precise reproducibility, user independency and special test procedures are necessary, an automatic operated torque measuring device is an optimal solution.

The easy way to measure torque

This torque measurement instrument shows a graphic display of the torque curve for easy assessment and allows for interactively programmable measuring sequences. It is suitable for integration in standard beverage procedures and suitable for use in the lab or on the filling line.

Fully automated torque measurement

This flexibly programmable torque measurement tool is fully automatic and suitable for a variety of measurement categories, including:

  • Physical performance test method
  • Removal torque, physical performance test method
  • Strip torque

Torque measurement for a variety of bottle caps

In the food sector or beverage industry, the opening torque of bottles and other containers with twist off closures is an important quality parameter and vital for customer satisfaction. The last thing a consumer wants is to find that they are unable to open their beverage.

It’s also essential that torque is understood when it comes to bottle caps for the pharmaceutical industry, where the ability to open a bottle could be of upmost importance. There’s also the risk that if you don’t know the required torque to close a cap, problems may occur on the production line.

How to use the Steinfurth Torque Measuring System TMS 5010

This torque measuring device is very easy to use, with a user independent process that offers repeatable and reliable results perfect for the beverage industry and suitable for many more applications.

The bottle (container) is fitted to the clamp mechanism and automatically opened. The reactive torque is monitored, and its peak value and torque curve displayed and stored afterwards. Measuring the closing torque is also possible, allowing you to also record the amount needed to seal a cap.

Related products for torque measurement

If you need a full suite of torque measuring devices or different specifications are needed, we also have the Steinfurth Torque Measuring System TMS 2000, which offers manual closure torque measuring, and the Steinfurth Torque Tester TS 500. This is a compact, on the go torque measuring system ideal for testing out in the field or when a portable solution is necessary.


Measuring range:  0 – 50 in-lbs, both directions (others on request)

Accuracy:  0.25 %

FS Resolution:  0.03 in-lbs (50 in-lbs version)

Memory:  according to configuration

Interface:  LAN / RS 232

Supply voltage:  240V/115V AC, 50 Hz

Power consumption:  60 VA

Humidity protection:  IP 65

Dimensions (LxWxH): 600 mm x 400 mm x 900 m

Weight:  ca. 25 kg

Operation humidity:  up to 90% (non-cond.)

Operation temperature:  0..40 °C (32..104 °F)

    Steinfurth TMS 4000, 4010, 5000 & 5010 Calibration Kit

    The TMS 4000, 4010, 5000 and5010 Calibration Kit is designed as a perfect tool for the on-site calibration or verification of the Steinfurth Torque Tester TMS 5000. The device contains a screwed fixation plate for assembling with the TMS 5000, a ball bearing load support assembly and the necessary hardware and calibration weights for optimal performing of an accurate calibration. The TMS 5000 calibration Kit is delivered with every new TMS 5000 device.

    SKU: 00009945

Measuring range:  0 – 50 in-lbs, both directions (others on request)

Accuracy:  0.25 %

FS Resolution:  0.03 in-lbs (50 in-lbs version)

Memory:  according to configuration

Interface:  LAN / RS 232

Supply voltage:  240V/115V AC, 50 Hz

Power consumption:  60 VA

Humidity protection:  IP 65

Dimensions (LxWxH): 600 mm x 400 mm x 900 m

Weight:  ca. 25 kg

Operation humidity:  up to 90% (non-cond.)

Operation temperature:  0..40 °C (32..104 °F)

    Steinfurth TMS 4000, 4010, 5000 & 5010 Calibration Kit

    The TMS 4000, 4010, 5000 and5010 Calibration Kit is designed as a perfect tool for the on-site calibration or verification of the Steinfurth Torque Tester TMS 5000. The device contains a screwed fixation plate for assembling with the TMS 5000, a ball bearing load support assembly and the necessary hardware and calibration weights for optimal performing of an accurate calibration. The TMS 5000 calibration Kit is delivered with every new TMS 5000 device.

    SKU: 00009945

Features & Benefits

User independent, precise torque measuring

Suitable for lab and filling line

Integrated standard beverage procedures

Interactively programmable measuring sequences

Easy handling

Standardised variable

Top Load Integrated calibration device

Graphic display of torque curve

Measuring data evaluation by standard PC software (MS-Excel™)

Automatic application angle measurement
