MM300 Moisture Transducer For Reliable Moisture Measurement

Moisture Transducer MM300 For Moisture Measurement For integrated, cost effective moisture analysis for OEM's and multiple sampling points

View All Documents

Discontinued

View alternative

Arrange a Service

Make an Inquiry

Jump To:

Specifications, Features & Benefits
Documents and Standards

Description

Where simple, accurate moisture measurement is required, the MM300 is the ideal choice.

Designed with the OEM user in mind, the MM300 transducer and monitor can be easily integrated into a wide range of systems. This two wire loop powered dew point transmitter is designed for moisture measurement in gases. Suitable for applications in the petrochemical, power generation and process industries. The 4-20mA output measures dew point temperature in gases at line pressure or atmospheric pressure.

The MM300 mounts directly in the gas stream for applications including glove boxes, environmental chambers and test chambers.

The optional monitors provide many additional functions including alarm set points and 4-20mA re-transmission and provides the power for the current loop.

Can be applied in:
Industrial gases (as a purity check)

Specifications

SKU: MM300

Applications: Gas Analysis Testing

Materials: Gas

Gas : Moisture

Application : Industrial Gas, Intrinsically Safe

Measurement range : -100°C to +20°C (-148°F to 68°F) Dew Point

Technology : Aluminium oxide

Accuracy : ±2°C (±3.6°F) Dew Point

Response Time : 90% of reading (T95) less than 5 minutes (dry to wet)

Ingress Protection : IP66, Nema 4X

Features & Benefits

Measurement range from -100°C to +20°C (-148°F to 68°F) dew point
IP66 (NEMA 4) Protection
Fast response
Temperature compensated over operating temperature range
Two wire loop powered
Optional easy to read monitor with bright LED display eliminates reading errors
Optional remote monitoring
Optional intrinsically safe transducer

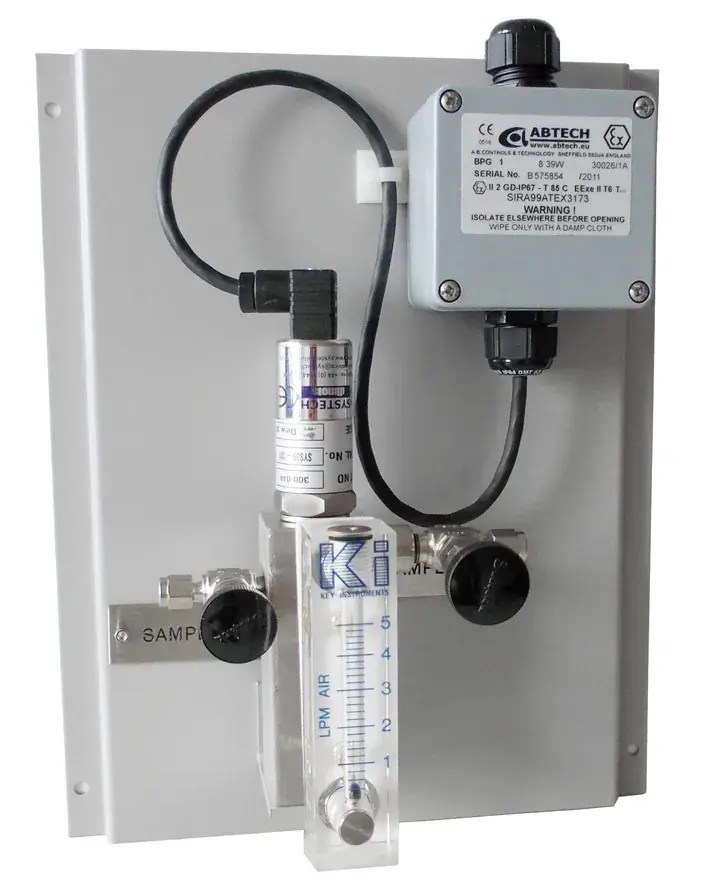

Optional wall mounted sample system
Calibration traceable to NIST

Ready to Take the Next Step?

Interested in this product?

Select variables above

Our team is ready to help you

Make an Inquiry

Discontinued

Do you own this product?

Select variables above

Support & service available

Get Support

Arrange Service

Documents

MM300.pdf (222.62 KB)MM300_U.S-2.pdf (218.92 KB)Spec sheet A4 (613.31 KB)
