Products  > TQC Sheen Mechanized Scratch Test Tester (SH705)

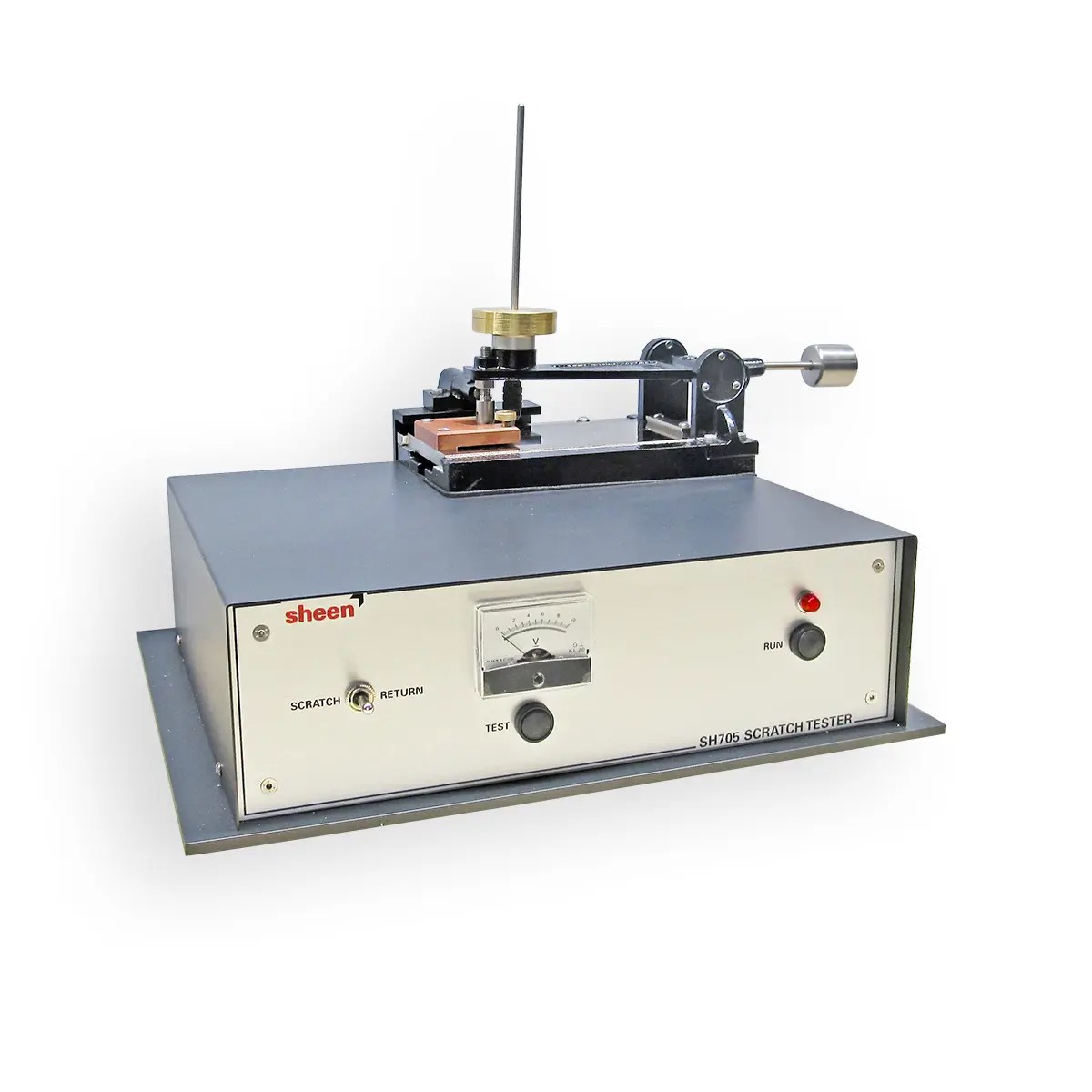

TQC Sheen Mechanized Scratch Test Tester (SH705)

The TQC Sheen Mechanized Scratch Tester enables customers to test coating hardness on coated metal test panels with improved repeatability.

In order to request a quote, arrange a service or make an inquiry about this product you must select modifiers above.

Description

By TQC Sheen, our paint testing specialist brand, the TQC Sheen Mechanized Scratch Test Tester is dedicated to coatings hardness evaluation based on the scratching resistance method.

A test panel is clamped down and slowly moved at 35 mm/s whilst a stylus with a tungsten carbide tip rubs and potentially scratches the coated surface. Depending on test procedures, specified loads can be applied to obtain different degrees of failure, from trace to destruction. A simple meter indicates the stylus contacting the metal sample substrate.

The scratch tester comes with the weight set required by the current ISO 1518-1. The weight set specified by the preceding standard is optionally available

Mechanized Scratch Test Scope of Supply:

  • Mechanized Scratch Tester SH705
  • ISO1518-1 20 N set of weights: 2 x 0,5 N, 1 x 1,0 N, 2 x 2 N, 1 x 4 N and 1 x 10 N and 1 spindle
  • Hemispherical 0,5 mm radius stylus A
  • Power cord

Material testing

The scratch test is a method used to assess the hardness or abrasion resistance of a material. It involves scratching the surface of the material with a standardized tool, such as a diamond-tipped stylus, and measuring the resulting damage or deformation. After the scratching process is complete, resulting scratch is examined visually or using specialized equipment, such as a microscope or profilometer.

Specifications

SKU:

Applications: Coating Testing, Scratch Testing

SH0530: 230 VAC / 50 Hz

SH0614: 110 VAC / 60 Hz

Max. panel size: 100 x 150 x 1,6 mm

Coating thickness: Max. 0,3 mm linked to the 0,5 mm radius stylus tip.

Table speed: 35 mm/s

Interested in this product?

Please select product variables here Make an Inquiry Request a Quote Request a Quote

Do you own this product?

Please select product variables here Get Product Support Get Product Support Arrange a Service Arrange a Service

Standards

The Problem

When your customers must be able to rely on your inks and coatings there’s no margin for error in your test and inspection processes. So, settling for second-rate equipment and advice is a risky business!

The Solution

With several dedicated inks and coatings testing brands in the Industrial Physics family, our industry-leading product portfolio and expertise is even relied upon by leading paint testing laboratories.

The Result

Artur Palasz, R&D Director at Spektrochem, said:

Many of our customers appreciate Industrial Physics equipment, because it is a world-class apparatus that they know and use in their laboratories. Excellent technical contact, perfect customer service and fast order processing time are undoubtedly additional advantages that determine the choice of Industrial Physics as our permanent supplier of laboratory equipment today and in the future.”

Spares and Accessories

Close View of TQC Art. nr. VF2067

2 kg Set of Weights (1x 100 g, 2x 200 g, 1x 500 g, 1x 1000 g) (superseded standard)

Calibration Available

Close View of TQC Art. nr. VF2067

Weight set for ISO 1518-1 (2x 0.5 N, 1x 1.0 N, 2x 2 N, 1x 4 N and 1x 10 N)

Calibration Available

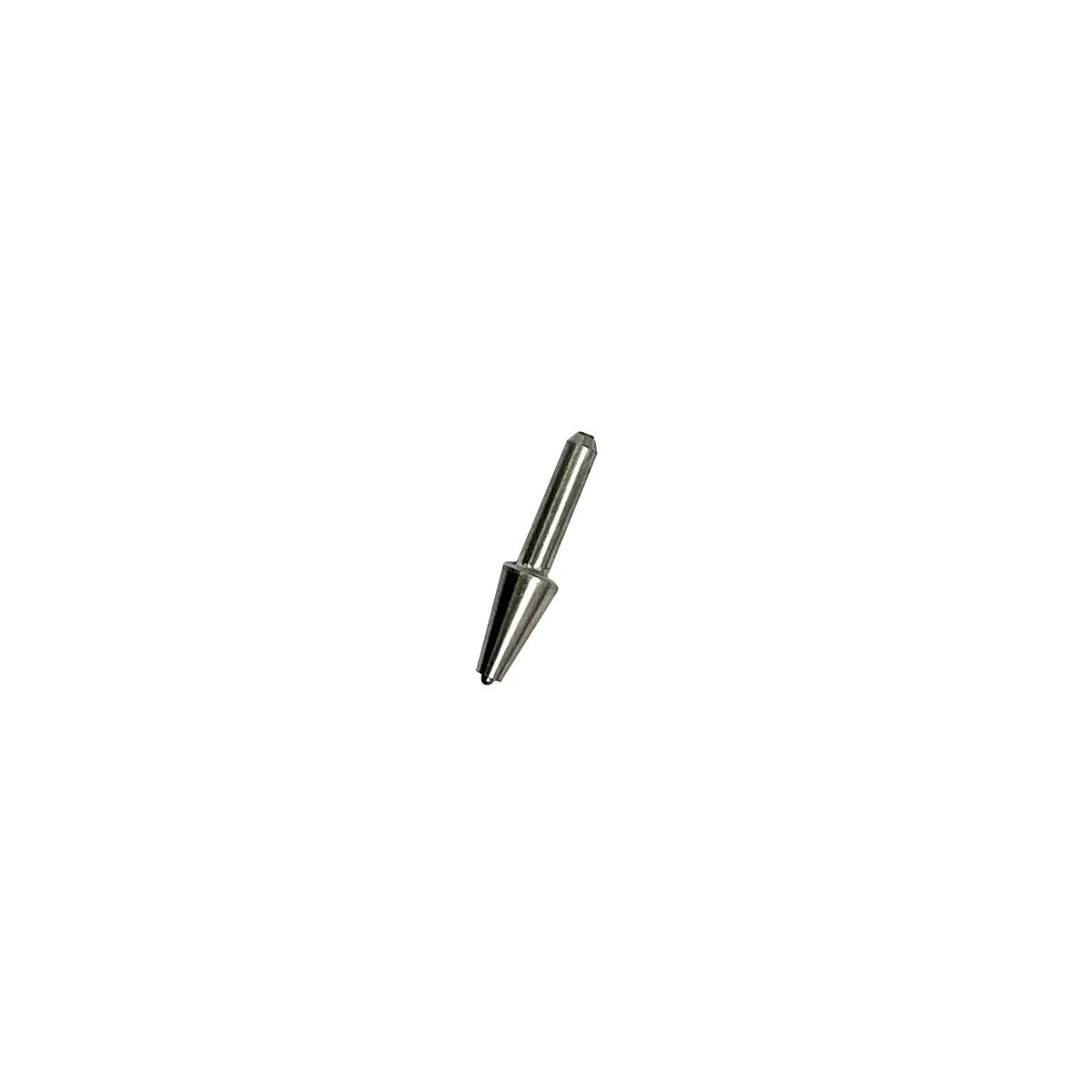

stylus tip

Replacement Stylus Tip is compatible with the TQC Sheen Mechanized Scratch Test Tester, ensuring continued accuracy and reliability in your procedures.
