Products  > TQC Sheen Defelsko Calibration Standards for Coating Thickness Gauges

TQC Sheen Defelsko Calibration Standards for Coating Thickness Gauges

In order to request a quote, arrange a service or make an inquiry about this product you must select modifiers above.

Description

Plastic foils and certified plastic shims. Available in the range of 12 to 20.000 micron. These foils can be applied to all ferrous- or non-ferrous metal substrates.

Non-Certified Plastic Shims
Non-Certified Plastic Shims (foils) provide a quick operational check of the instrument and they allow the user to perform practice measurements when placed over metal.

Provide a quick operational check of the instrument by allowing the user to perform practice measurements
Can be used to protect the probe when measuring on tacky, rough or hot surfaces

Labeled in both Metric and Imperial units

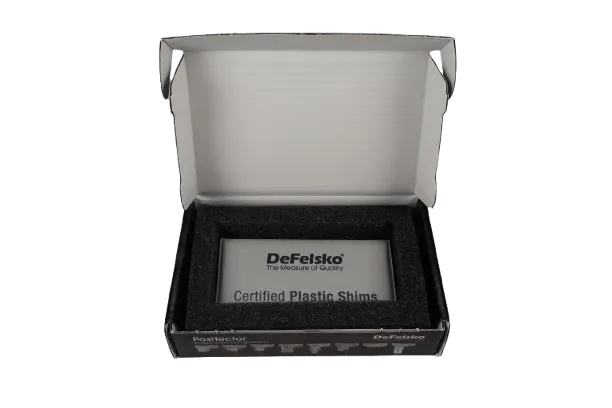

Certified Plastic Shims
Certified Plastic Shims (foils) provide an economical alternative to coated metal plates. They have a reduced accuracy of ±2 µm (±0.08 mil). A coating thickness gage measures shim thickness when this shim is placed over a smooth metal surface (zero plate). Alternatively, they can be placed over an uncoated metal substrate. They are not suitable for use with magnetic pull-off gages.

Each shim is packaged in their own plastic protective pouch
Certificate of Calibration showing traceability to NIST is included with each shim or set of shims
Certified and labeled in both Metric and Imperial units

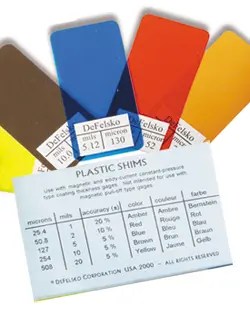

Coating thickness calibration standard, set of 5 Plastic Shims, Non-Certified25 µm (1 mil) Orange ± 20%, 50 µm (2 mil) Red ± 10%, 125 µm (5 mil) Blue ± 5%, 250 µm (10 mil) Brown ± 5%, 500 µm (20 mil) Yellow ± 5%

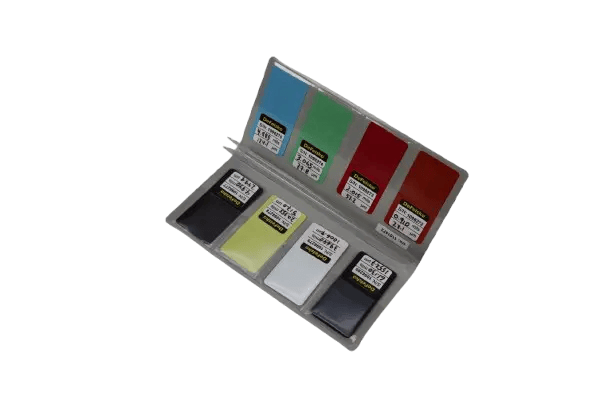

Coating thickness calibration standard, set of 8 Plastic Shims, Certified, accuracy ±2 µm (±0.08 mil) 25 µm (1 mil) Orange, 50 µm (2 mil) Red, 75 µm (3 mil) Green, 125 µm (5 mil) Blue, 250 µm (10 mil) Brown, 500 µm (20 mil) Yellow, 1000 µm (40 mil) White, 1500 µm (60 mil) Black

Coating thickness calibration standard, single Plastic Shim, Certified, ±2 µm (±0.08 mil)Select one from: LD5417

Specifications

SKU:

Applications: Coating Testing, Thickness Testing

Materials: Inks and Coatings
