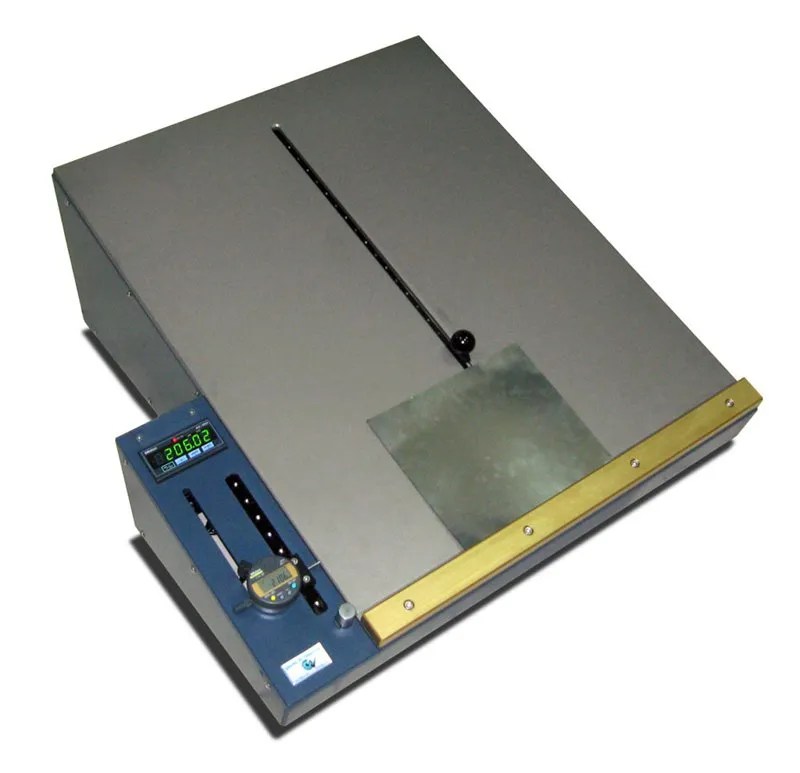

CMC KUHNKE Body Blank Gauge for Metal Packaging

The high-precision CMC-KUHNKE Body Blank Gauge enables simple and precise measurement of body blank height, body blank width and body blank squareness for can making and testing

SKU:10171

BBG-2-600/950/1200

Applications:

Description

Specifications

Documents

Measuring with the CMC-KUHNKE Body Blank Gauge

The CMC-KUHNKE Body Blank Gauge for metal packaging is a reliable and robust test inspection solution that lets you measure the body blank height, width and blank squareness of metals with high precision linear compensation.

Ensure accurate slitter setups every time, with this high-precision body blank gauge for can making. Different users will have the same results, because they will be measuring with the same light force every time. This ensures repeatability of results and lets you know that you are receiving data you can rely on.

How the Body Blank Gauge ensures accurate results

With the help of a linear slide and heidenhain sensor combination, and another heidenhain sensor for the angle measurement, this high-precision digital gauge achieves a constant measuring force allowing for accurate, repeatable, and user-independent measurements.

Body blank measurements in can making

Ensuring that you have precise measurements of the body blank height, body blank width and body blank squareness of your components is an essential part of the can making process. It allows you to check that your slitter setups are accurate. Even a small unit of imprecision can result in material waste, costing you money and time. Being able to accurately assess your can body blanks offers the opportunity to quality check your process before manufacture. Make your can inspection quality assurance process even easier, with the Blank Body Gauge.

The right body blank gauge for the job

The Body Blank Gauge is also available in a range of different models, including the BBG-2-600, BBG-2-950 and BBG-2-1200, ensuring you can find the size and specifications that suit your set up.


Max blank length:  600mm

Characteristics measured:  body blank height, body blank width & squareness

Measurement units:  mm, inch

Languages:  English and other languages

Output interface:  rs232c

Electrical power required:  120/240vac 50-60hz

Resolution:  0.00004in (0.001mm)

Weight:  172lbs. (78kg)

Accuracy:  ±0.00008in (±0.002mm)

Dimensions:  33.5 x 23 x 16in (850 x 585 x 410mm)

Max blank length:  600mm

Characteristics measured:  body blank height, body blank width & squareness

Measurement units:  mm, inch

Languages:  English and other languages

Output interface:  rs232c

Electrical power required:  120/240vac 50-60hz

Resolution:  0.00004in (0.001mm)

Weight:  172lbs. (78kg)

Accuracy:  ±0.00008in (±0.002mm)

Dimensions:  33.5 x 23 x 16in (850 x 585 x 410mm)

Features & Benefits

Increases accuracy and saves time, for a faster can making process

Constant measuring force for repeatable, user independent results

Sequential measurement of body blank height, body blank width & squareness

Heidenhain counter electronics with linear compensation in industrial quality

Z-iii counter electronics with linear compensation

Integrated data sending button in measurement slide

Also available with BBG-900/1200 extension table to accommodate large sheets from the coil cutting line (incl. long rail for squareness probe)

Available models: BBG-2-600, BBG-2-950, BBG-2-1200
