CMC KUHNKE AUTO-XTS
Double Seam Inspection (Seam Thickness, Countersink Depth, Seam Height, Body Hook, Cover Hook, Overlap, Seam Gap, % Body Hook Butting) Wrinkle Rating (% Tightness).
Double Seam Inspection (Seam Thickness, Countersink Depth, Seam Height, Body Hook, Cover Hook, Overlap, Seam Gap, % Body Hook Butting) Wrinkle Rating (% Tightness).
Description
Specifications
Documents

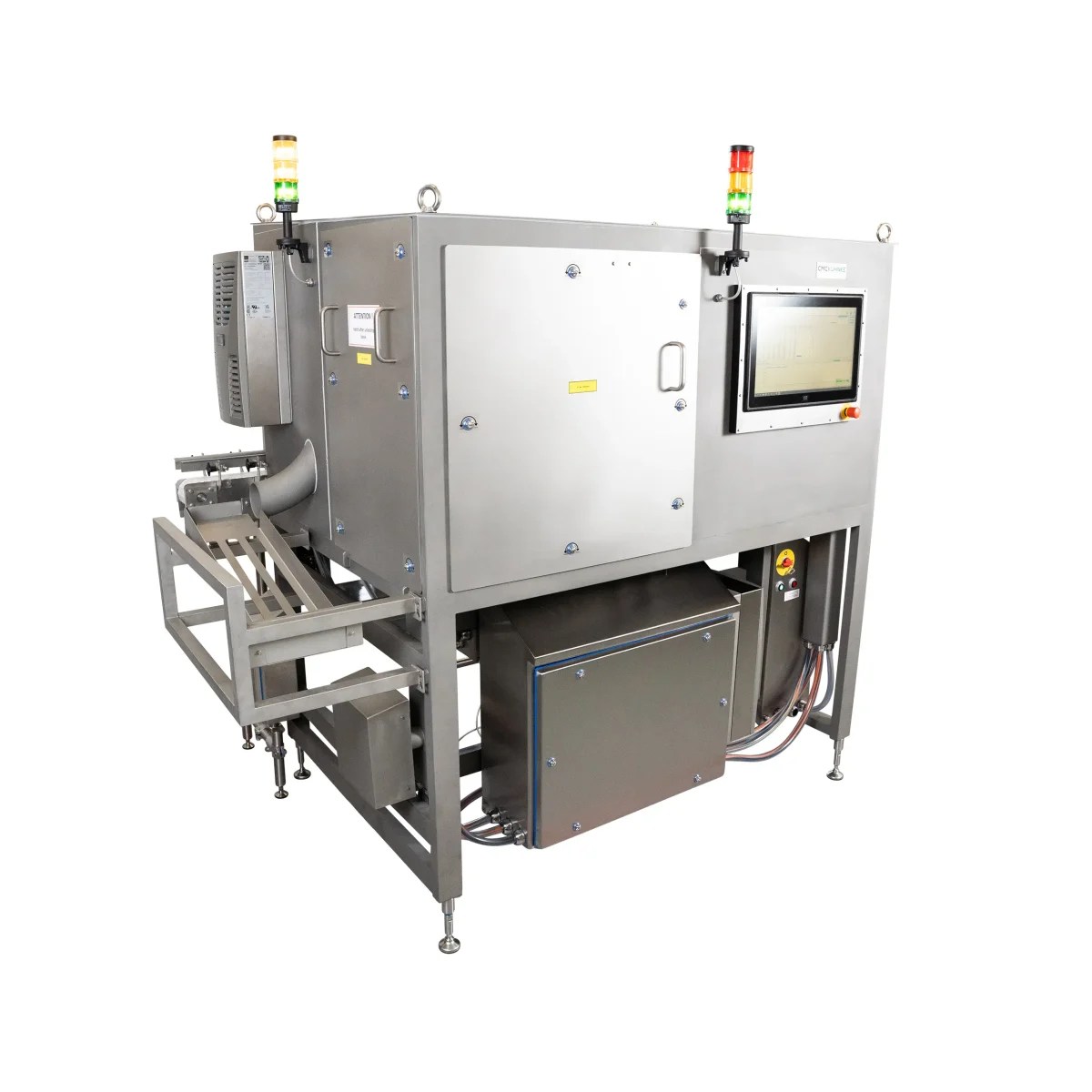

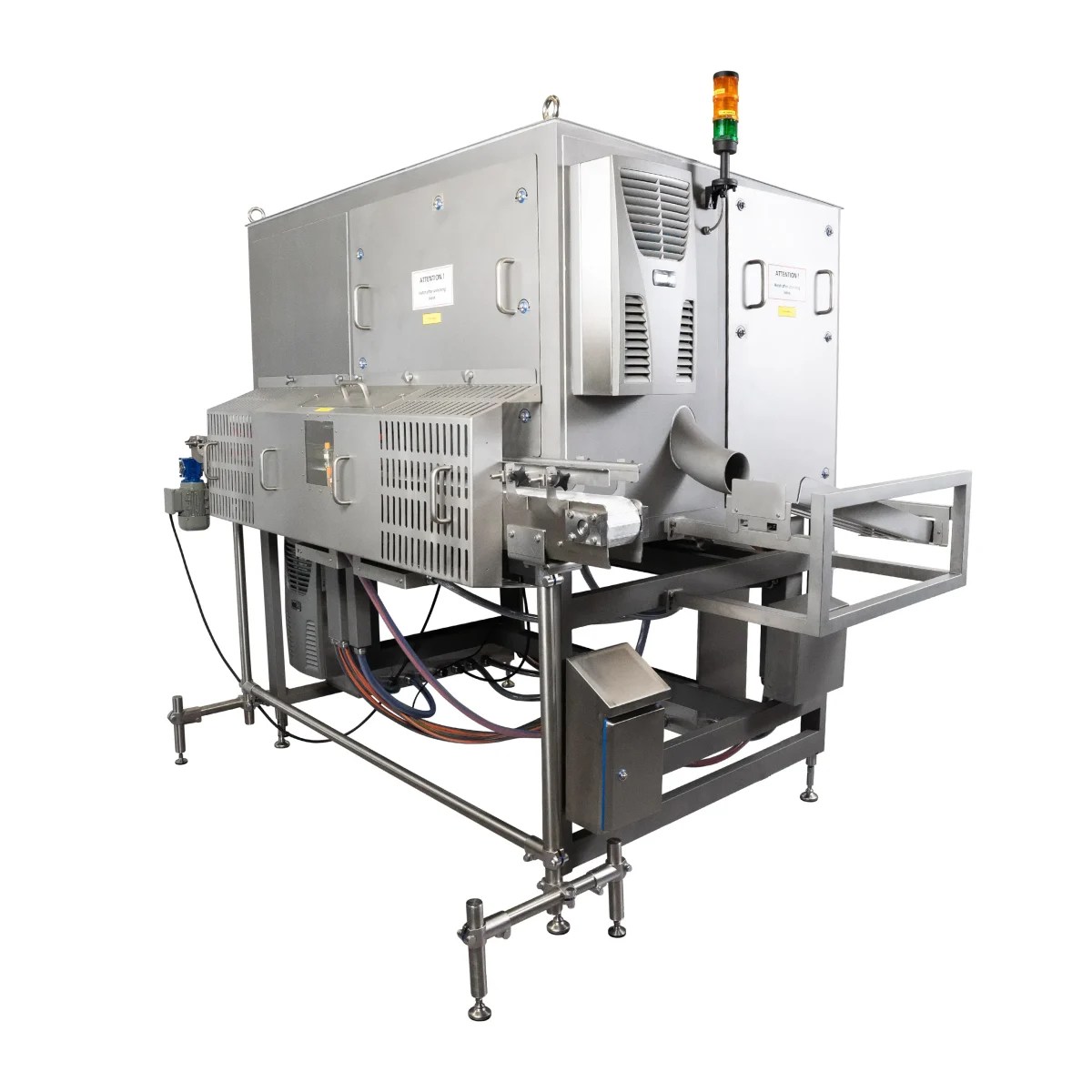

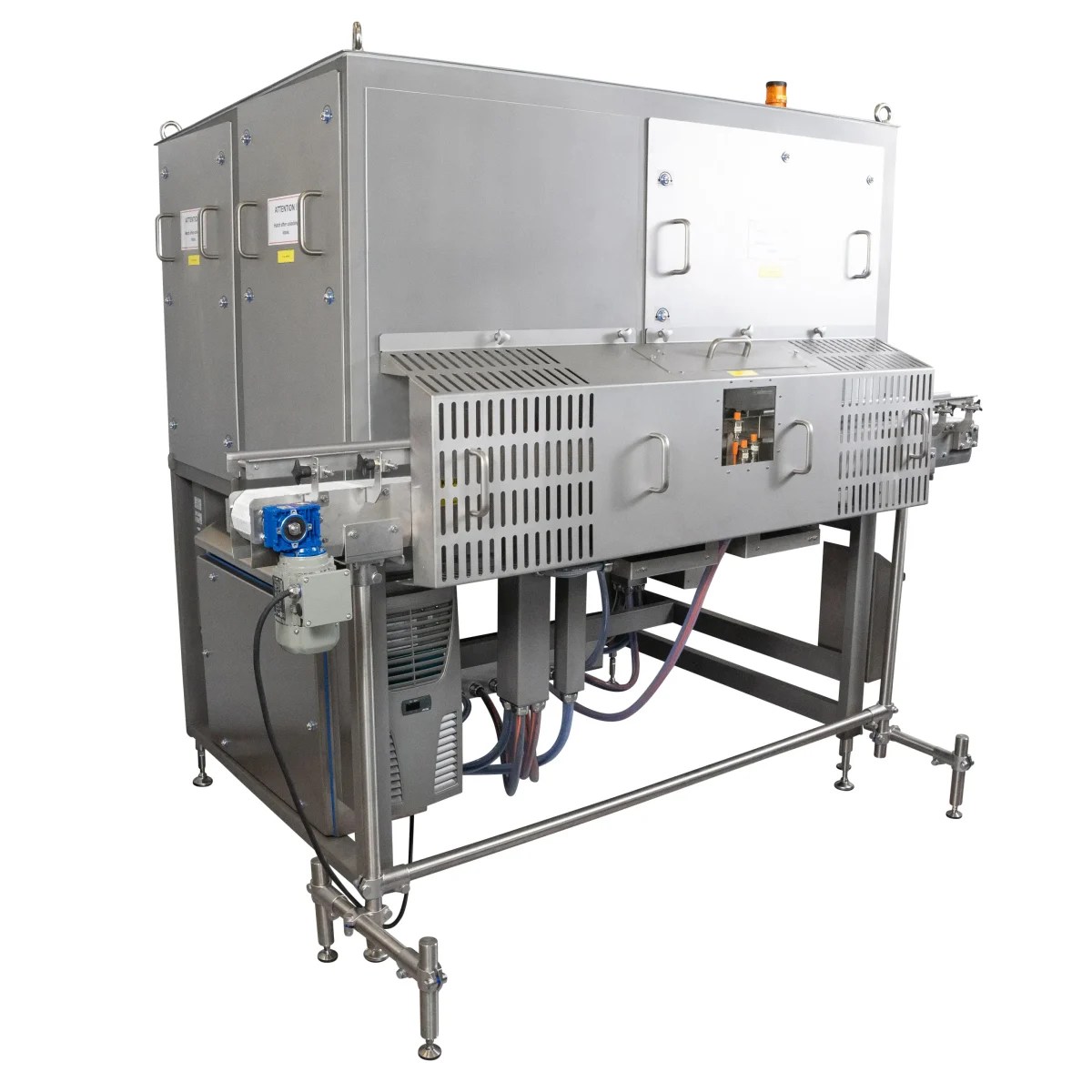

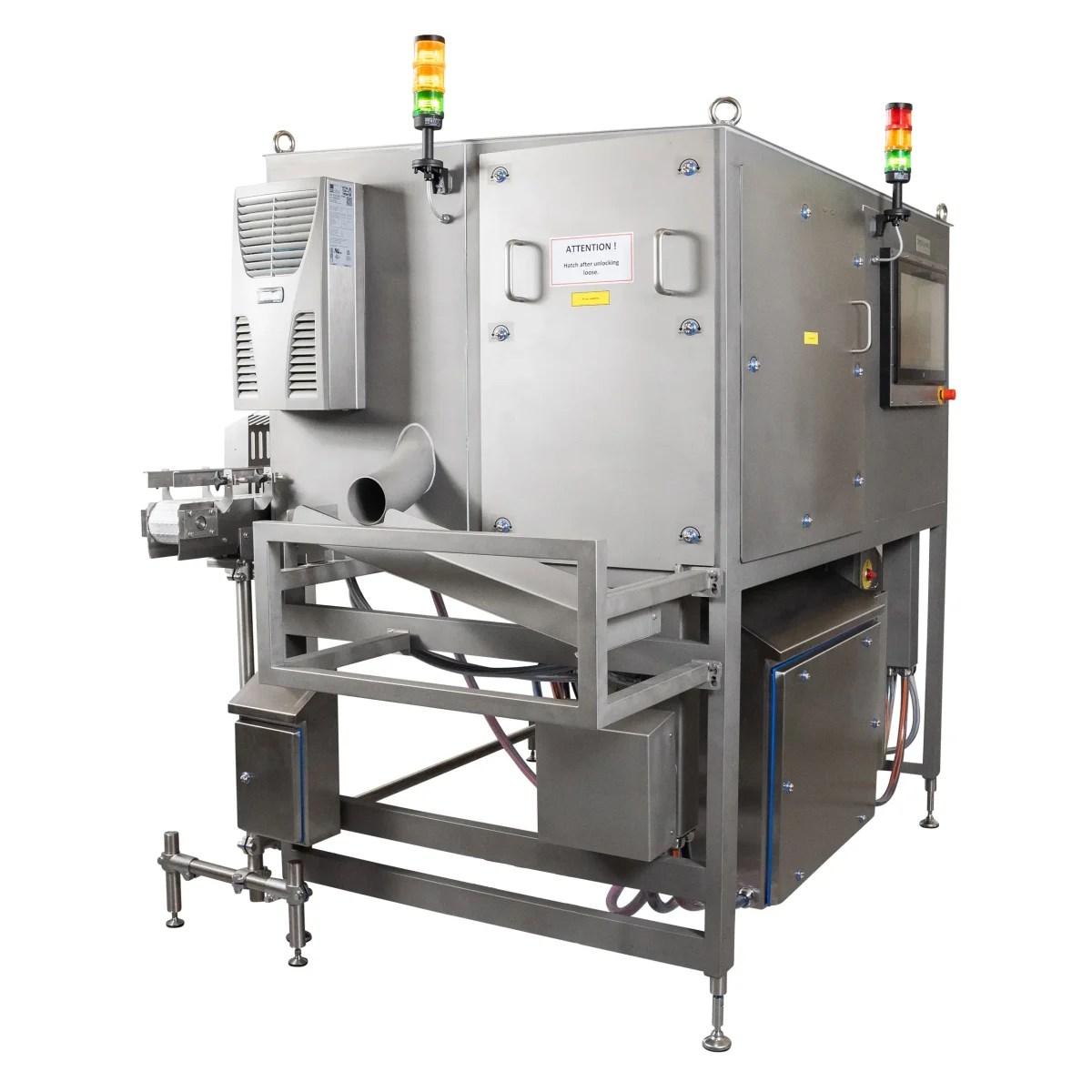

The AUTO-XTS is a fully-automated, on-line or stand-alone measurement system that provides non-destructive, complete double seam inspection for beverage fillers. The fully-automated AUTO-XTS combines the internal X-ray seam measurements of the SEAMscan XTS with a second station for external measurements into one robust unit, providing faster inspection results, and reduced labor costs.

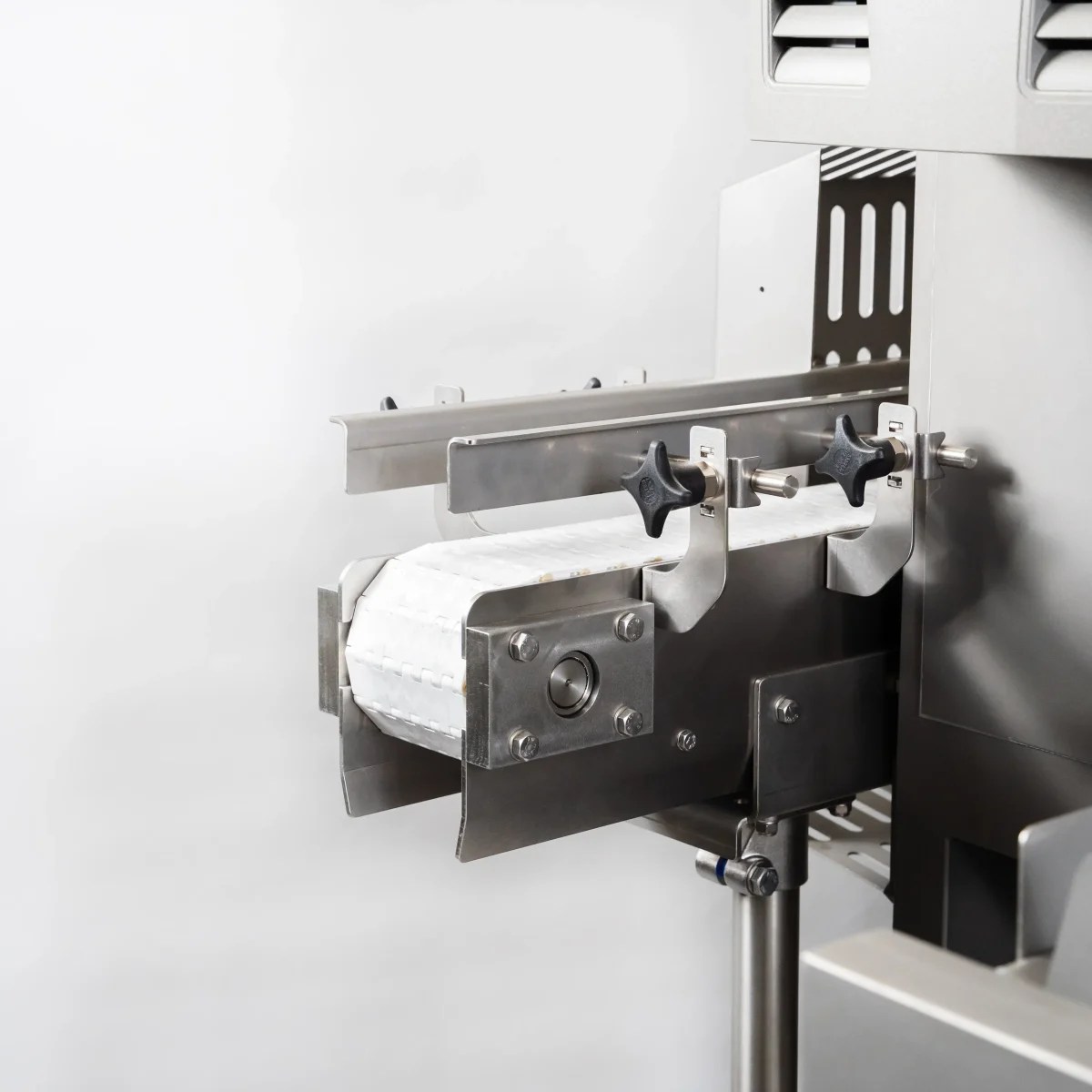

A robot handling system moves a complete range of filled beverage cans through the measurement stations.
Station #1: The can is automatically carried to Station #1 for measurement of Countersink Depth and Seam Thickness using CMC-KUHNKE’s TSG Gauge series. Measurements are made in up to 36 locations around the can.
Station #2: Patented XTS technology uses safe, low-power X-ray imaging to measure internal parameters of the seam, including tightness. The content is not affected by the X-ray.
Out-Feed: Once the double seam inspection has been completed, the cans are placed in order by head number either onto a conveyor for online systems, or into a carrying basket for manually loaded systems.
Connectivity Required: Connection to LAN (RJ45), 1 fixed IP Address (for external database access)
Measurement units: mm, in
Resolution: 0.01 mm (0.025 in)
Output: RS232
Electrical power required: 100-240VAC 50-60Hz, average power consumption 600W
Air pressure: 6-8 bar (90-145 psi), filtered dry air, max flow 35 SCFM
Size: 260 x 200 x 120 cm (102 x 79 x 48 in), 400 kg (882 lbs)
Languages: English, Spanish, Chinese, German
Connectivity Required: Connection to LAN (RJ45), 1 fixed IP Address (for external database access)
Measurement units: mm, in
Resolution: 0.01 mm (0.025 in)
Output: RS232
Electrical power required: 100-240VAC 50-60Hz, average power consumption 600W
Air pressure: 6-8 bar (90-145 psi), filtered dry air, max flow 35 SCFM
Size: 260 x 200 x 120 cm (102 x 79 x 48 in), 400 kg (882 lbs)
Languages: English, Spanish, Chinese, German
Faster and safer
Fully-Automatic
No product spoilage
Proven, patented
360° tightness scan
Operator independent
World class R&R
Data is sent automatically to Visionary QC™ or other data acquisition and SPC reporting software
Automatic wrinkle identification and percentage calculation
Automatic dimple detection
Automatic tab detection
Excellent X-Ray-shielding (TÜV Rheinland tested to < 0.1 mSv per year)
Easy to use calibration/verification mode (with calibration piece)
Works with Visionary QC™ SPC Software
Easy-to-use Statistical Process Control for quick analysis of can inspection data
Flexible, secure database
Intuitive inspection reports may be shared and exported
Track trends and statistics with SPC Graphs
